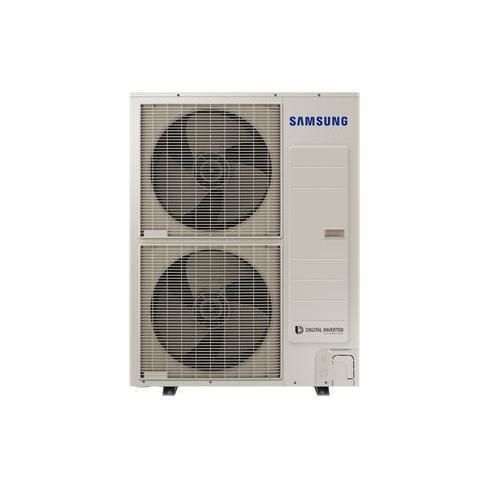

Air source heat pump AE120RXYDEG/EU

air/watercommercialresidential

Overview
The Samsung EHS Mono Outdoor (R32) is an outdoor heat pump designed for domestic and light-commercial heating and cooling. It uses R32 refrigerant to lower global warming impact, features compact dimensions for simplified installation and maintenance, and supports ClimateHub touch control for zone and energy management.

Convenient and intuitive control
ClimateHub Mono, Split and TDM Plus controllers provide multilingual touch interfaces with a colour display for setpoint adjustment, energy monitoring, summer time setting and rapid error indication. Independent temperature settings per zone enable efficient operation with high-temperature radiators and low-temperature underfloor heating.

Next generation refrigerant (R32)
The EHS Mono / Split range is charged with R32, which has an ODP of 0 and a lower GWP than R22 or R410A. R32 reduces required refrigerant mass and associated CO₂e compared with equivalent R410A systems.

Easy installation
The compact outdoor unit and modular Tank Integrated Hydro Unit simplify handling and reduce required installation space. The integrated hydro unit or control kit with 200 L or 260 L hot water tank and partial piping layout reduces installation time and increases siting flexibility.

Available capacities / power options

• Available capacities: 5.0 kW, 8.0 kW, 12.0 kW, 16.0 kW
• Power supply: single-phase available for selected capacities

Notes / Additional information

• Images and example applications are illustrative.
• Language availability: 16 languages including English, German, French, Italian, Spanish and Portuguese.
• GWP: R32 = 675 vs R410A = 2,088.
• Refrigerant quantity: EHS Mono and Split (R32) require ~83% of refrigerant compared to a conventional R410A system of the same capacity, reducing CO₂ emissions accordingly.

Technical specifications

• Type: MONO
• Mode: Heat pump (A2W)
• Capacity (Cooling): 12.00 kW
• Capacity (Heating): 12.00 kW
• Displayed product capacity (page header example): 5.0 kW (capacity selector available)
• Current input: Cooling 13.2 A; Heating 12.2 A
• Energy efficiency: EER (Cooling) 4.33 W/W; COP (Heating) 4.53 W/W
• Power (electrical): MCA 28.0 A; MFA 35.0 A
• Power input: Cooling 2.770 kW; Heating 2.650 kW
• Fan air flow rate (High/Mid/Low): 99 CMM
• Refrigerant type: R32 (contains fluorinated greenhouse gases, GWP = 675)
• Factory charging (refrigerant): 2.20 kg
• Factory charging (tCO2e): 1.49 tCO2e
• Control method: EEV INCLUDED
• Sound pressure: 50 dBA
• Sound power level: 65 dBA
• Operating temperature range: Cooling 10–46 °C; Heating −25–35 °C; Domestic hot water −25–43 °C
• Leaving water temperature: Heating 15–65 °C; Cooling 5–25 °C
• Outdoor unit net weight: 110.0 kg
• Net dimensions (WxHxD): 940 x 1,420 x 330 mm
• Smart features: Wi‑Fi embedded N/A; Bluetooth N/A; Wi‑Fi kit N/A; SmartThings app support N/A
