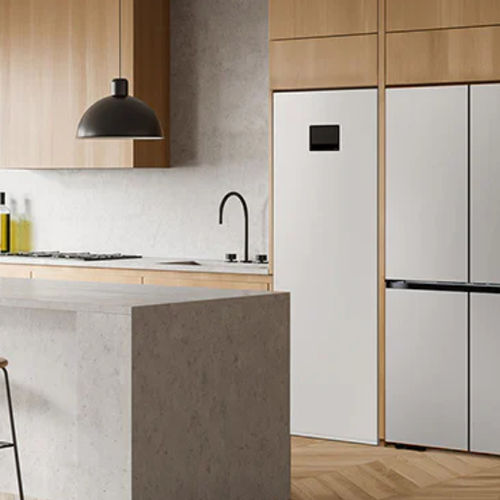

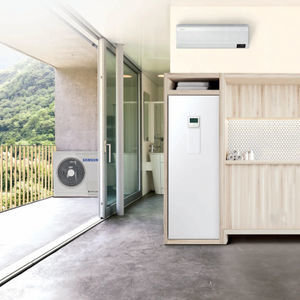

Air/water heat pump AE200DNXTPHEU

with integrated hydraulic modulehomefor indoor installation

Overview
The TDM Plus ClimateHub S2 (2-zones) is an integrated hydro-unit and domestic hot water tank solution designed for residential use. It features a slim-fit indoor design, AI Home control with a 7” touch display, embedded Wi‑Fi and SmartThings app compatibility, and options for backup electric heater capacities. The 2-zone models include a circulation pump, mixing valve and temperature sensor enabling two heating zones without additional devices.

Key product highlights

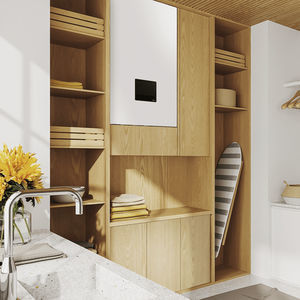

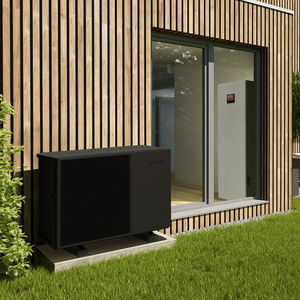

• Slim fit design for seamless installation in various locations and multi-unit dwellings.
• AI Home: 7” touch display control center supporting multiple languages, monitoring of solar PV usage and control of connected SmartThings appliances.
• Quick & easy installation: magnetic filters, 3‑way valves and expansion vessel included; can be installed rapidly (even in one day).
• Energy saving improvements: enhanced heat transfer area, reduced heat loss with 3-layer insulation; improved water heating efficiency compared to previous model.
• New Emergency Mode: automatic switch to electric heater if heat pump fails to maintain hot water and space heating (software availability noted for certain models/updates).
• Effortless support: user manual accessible via the AI Home display when the EHS system is connected to the Internet.
• WiFi embedded and SmartThings App support for remote monitoring and AI Energy mode functions.

Capacity & variants
Available nominal tank capacity: 200 L. Available power options: single phase (1Φ) and three phase (3Φ) variants depending on model and backup heater selection. Backup heater capacities available: 2 kW and 4 kW in single phase, 6 kW in 3 phase; optional 3 kW backup heater (MHC-300FP) can be added to reach higher electric heater output (sold separately).

Performance & operating ranges
Operating temperature ranges and leaving water temperatures: A2W heating up to 55°C (A2W heating range 15–55 °C), domestic hot water 30–70 °C, leaving water heating 15–65 °C, cooling range 5–25 °C where applicable. Several internal tests and EU test condition comparisons are referenced for efficiency and heat loss improvements.

Documentation
Declaration of Conformity document available for this product (product documentation provided by manufacturer).

Caractéristiques / spécifications techniques

• Type: TDM type wallmount hydro unit.
• Mode: Heat Pump (A2W).
• Commercial model/series name: TDM Plus ClimateHub S2 (2-zones).
• Designation shown on product page: AE200DNXTPHEU (variant identifier).
• Available capacity (tank): 200.0 L (nominal); net water volume 194 L.
• Available power / variants: 1 Phase and 3 Phases options (model-dependent).
• Power supply (indoor unit): 3Φ, 380~415V, 50Hz / 1Φ, 220~240V, 50Hz.
• Current input (examples): Cooling: 1Φ 1.3 A; Max Heating: 3Φ 8.7 A / 1Φ 18.7 A (values shown per variant).
• Power input (examples): Cooling 1Φ 0.3 kW; Max Heating 3Φ 6.0 kW / 1Φ 4.3 kW.
• MCA: 3Φ 8.7 / 1Φ 18.7 A. MFA: 3Φ 10.9 / 1Φ 23.4 A.
• Energy Efficiency (provided fields): Water heating energy efficiency class A+ declared; other EER/COP fields N/A for some configurations.
• DHW declared load profile: L (Large).
• DHW energy efficiency class: A+.
• DHW tank material: SUS 316L.
• DHW tank insulation: Inner EPP + VIP + Outer EPS.
• Nominal water volume (tank): 200 L; Max. water pressure: 10 bar; Max. water temperature: 70 °C.
• Backup heater: example spec shown 3Φ 6 kW; thermal fuse specification: 98 +0 -5 °C.
• Safety devices: Relief valve pressure 2.9 bar; Flow sensor: 5–60 LPM; Tank temperature & pressure relief valve: 10 bar, 90 °C.
• Expansion vessel: internal water volume 10 L; working pressure 0.3 MPa.
• Water pump (primary): BLDC Inverter (PWM); Max. static pressure: 9 mmAq (listed as 9 mAq).
• Water heat exchanger: Brazed plate exchanger; internal water volume 1.01 L (water side) / 0.98 L (refrigerant side).
• Piping connections (refrigerant split): Flare nut; liquid pipe Ø 9.52 mm (3/8"), gas pipe Ø 15.88 mm (5/8").
• Space heating piping connections: Straight pipe; liquid/gas pipe Ø 28 mm for space heating lines.
• DHW piping connections (mono): Straight pipe; liquid/gas pipe Ø 22 mm.
• DHW piping connections (secondary water): BSPP male type; liquid connection example shown as 1" (inch) mm listed.
• Installation limits: Max. height 30 m; Max. length 50 m.
• Refrigerant factory charging listed as 0 kg in table for this specific product record (factory charging fields shown as 0 kg / 0 tCO2e in the specification block).
• IP class: IPX1.
• Sound: Sound pressure 33 dBA; Sound power level 47 dBA.
• External dimensions (indoor unit): Net dimensions (W x H x D): 598 x 1,850 x 600 mm; Net weight: 145 kg.
• External dimension (outdoor unit): net weight shown as 0 kg / dimensions N/A in this record (not applicable for integrated hydro unit variant).
• Operating temperature ranges (examples): Cooling 4–35 °C; Heating 4–35 °C; A2W Heating 15–55 °C; A2W Cooling 5–25 °C; Domestic Hot Water 30–70 °C.
• Leaving water temperature: Heating 15–65 °C; Cooling 5–25 °C.
• Smart features: WiFi embedded: Yes; Bluetooth: N/A; WiFi kit: N/A; SmartThings App support: Yes.
• App & AI features: AI Home control center, AI Energy mode (reductions of energy consumption depend on model), PV monitoring capability when connected.
