Air/water heat pump AE125HCTPESEU

air/airresidentialfor outdoor installation

Overview

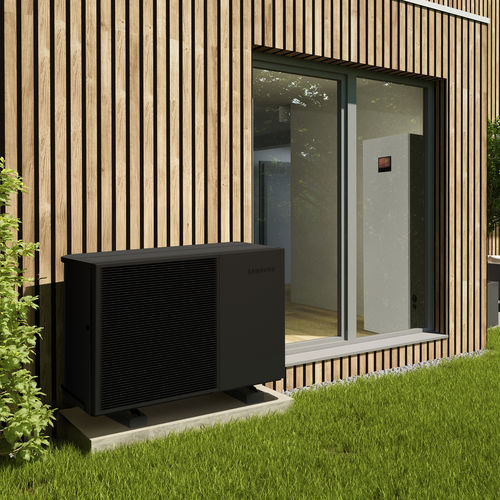

The Quint Outdoor is a compact outdoor heat pump unit engineered for residential projects to provide simultaneous heating and cooling across air-to-air and air-to-water applications, with optional domestic hot water (DHW) production. Its black finish and flexible installation options are designed to integrate into modern buildings while offering a single-system solution for HVAC and DHW needs.

Key features

• Simultaneous heating and cooling: supports air-to-air indoor cooling and air-to-water heating (underfloor or radiators) at the same time from one integrated unit.
• Five operation modes: combinations of heating, cooling and DHW, including simultaneous operation and heat recovery to reduce the need for multiple standalone systems.
• Heat recovery: captures heat extracted during air-to-air cooling and redirects it to the DHW tank to lower hot water energy demand.
• High-temperature capability: R32 refrigerant and leaving water temperatures up to 65°C in specified conditions.
• Flexible installation: supports multiple indoor unit configurations; ClimateHub pre-assembly option; wall-mounted Hydro Unit compatible with third-party DHW tanks; Control Kit for compact layouts.
• Safety and compliance: leak detection, shut-off valves and alarm functions to support A2L refrigerant requirements and simplify compliant installation.
• Improved outdoor performance: maintains heating capacity at low outdoor temperatures, supports DHW production during warm weather, and includes Night Mode to reduce operating sound to around 35 dB(A).
• Smart connectivity: Wi‑Fi kit included and SmartThings app support for remote control, monitoring, scheduling and energy review.

Applications
The Quint Outdoor is intended for residential new-builds and renovations that require an integrated single-system solution for simultaneous air-to-air and air-to-water heating and cooling, with optional DHW production and heat recovery to improve system efficiency.

Disclaimers / Performance notes
Leaving water temperature up to 65°C when outdoor temperature is between -5°C and 35°C; actual performance depends on site conditions and application. Certified installer required for refrigerant handling and regulatory compliance. Performance and noise improvements referenced relative to prior product ranges and depend on test/usage conditions.

Technical specifications

• Model: AE125HCTPESEU
• Capacity (Cooling): 12.5 kW
• Capacity (Heating): 12.5 kW
• Displayed capacity on page: 12.5 kW (range also includes 16.0 kW variants)
• Power supply: 1 Phase (3 Phase variants available in range)
• Mode: Heat Pump (A2W)
• Current input: Cooling 14.74 A; Heating 12.67 A
• Energy efficiency: EER (Cooling) 4.01 W/W; COP (Heating) 4.66 W/W
• Power input: Cooling 3.12 kW; Heating 2.68 kW
• Electrical protection ratings: MCA 32.0 A; MFA 35.2 A
• Fan: Propeller fan; Air flow (High / Mid / Low) approx. 87 m³/min
• Refrigerant: R32 (contains fluorinated greenhouse gases, GWP = 675)
• Factory charge: 2.70 kg (factory), equivalent 1.82 tCO2e
• Control method: EEV included
• Water heat exchanger: Brazed plate; internal water volume 1.008 L
• Leaving water temperature: Heating 15–65 °C; Cooling 5–25 °C
• Operating ranges: A2W Heating -25–43 °C; A2W Cooling 10–46 °C; DHW -25–43 °C; A2A Heating -25–24 °C; A2A Cooling 10–46 °C
• Sound: Sound pressure 49 dB(A); Sound power 62 dB(A); Night Mode reduces sound to ~35 dB(A)
• Dimensions / Weight (Outdoor unit): Net weight 126.5 kg; Net dimensions (W×H×D) 1270 × 850 × 500 mm
• Smart features: Wi‑Fi kit included; SmartThings App support (remote control, monitoring, scheduling)
