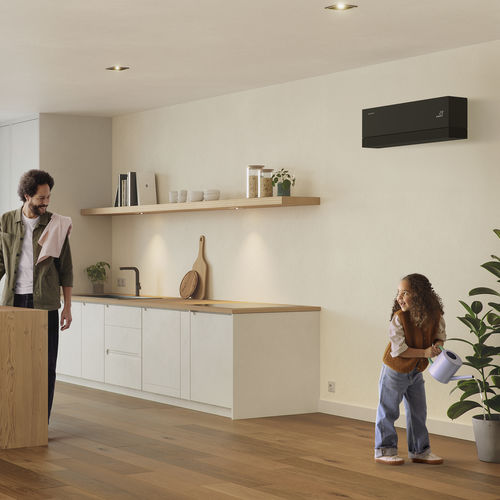

Wall-mounted air conditioner AR70H07CAAWNEU

splitcommercialreversible

Overview
WindFree Première+ is a wall-mounted split air conditioner offering precise climate control with WindFree™ low-speed micro-hole airflow, upgraded sensing and integrated smart connectivity. The shown model AR70H07CAAWNEU has a nominal cooling capacity of 2.0 kW and uses R32 refrigerant. Two finish options (Essential White, Soapstone Charcoal) facilitate integration in professional interiors.

AI-driven airflow & sensing
An upgraded radar motion sensor detects distance, angle and activity of up to two occupants to enable AI Auto Comfort adjustments. The AI-driven Motion Wind system features a triple-blade Motion Wings assembly with independently operating blades to expand vertical and horizontal air-direction range while increasing discharge speed and inlet area for targeted airflow distribution.

Air purification & filtration
The 4-in-1 Care Filter combines layers for large particles, fibers and pet hair with a silver-zinc zeolite layer targeting PM2.5, allergens and certain microbes. The unit also supports Auto Clean (self-cleaning) and Easy Filter Plus (anti-bacterial) for simplified maintenance.

Smart features
Embedded Wi‑Fi and SmartThings integration enable remote control, monitoring and mode scheduling. AI Auto Comfort analyses room conditions, usage patterns and outdoor temperature to select optimal modes (WindFree™, Fast Cooling, Normal Cooling, Heating). Voice control is available via Bixby 2.0 and compatible assistants where supported.

Key features

• Radar Sensor: radar-based motion sensing for adaptive airflow
• AI Motion Wind: triple-blade Motion Wings for enhanced directional control
• WindFree™: micro-holes design for gentle, draft-free airflow
• 4-in-1 Care Filter: captures large particles, PM2.5 and reduces certain microbes
• AI Auto Comfort: adaptive mode selection based on usage patterns
• SmartThings & Wi‑Fi embedded: remote control and app connectivity

Notes & disclaimers (summary)
Performance figures depend on test conditions and may vary with environment and use. AI and smart features require Wi‑Fi and relevant accounts; voice control requires supported services. Filtration and microbial reduction figures are based on specified test conditions.

Technical specifications

• Model: AR70H07CAAWNEU
• Available capacity (shown): 2.0 kW; related variants: 2.5 kW, 3.5 kW
• Cooling capacity: 6800 Btu/hr / 2.0 kW
• Heating capacity: 7500 Btu/hr / 2.2 kW
• Sound power level (indoor, cooling): 56 dBA
• Noise level (indoor, high / low): 34 / 19 dBA
• Power supply: 1 Phase, 220-240 V, 50 Hz
• Power consumption (cooling): 40 W
• Operating current (cooling/heating): 0.4 A
• Gross dimensions (indoor, W x H x D): 950 x 375 x 320 mm
• Net dimensions (indoor, W x H x D): 889 x 299 x 230 mm
• Gross weight (indoor): 13.2 kg
• Net weight (indoor): 11.3 kg
• Moisture removal: 0.8 l/hr
• Air circulation (cooling): 9.6 m3/min
• Refrigerant: R32 (GWP = 675)
• Air direction control (Up/Down, Left/Right): Auto
• Air flow control steps (Cool / Fan): 5 / 4
• 4-in-1 Care Filter: Yes
• Easy Filter Plus (anti-bacteria): Yes
• Auto Clean (self cleaning): Yes
• SmartThings & Wi‑Fi embedded: Yes
• AI Auto Cooling / Motion Detect Sensor / Filter cleaning indicator / Display / Timer / Auto Restart / Auto Changeover: Yes (features vary by model)
