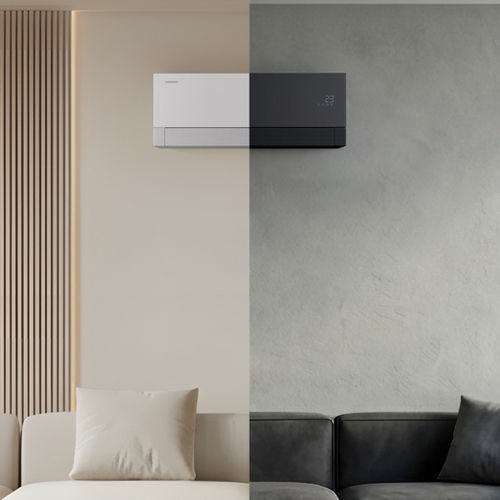

Wall-mounted air conditioner AR70H07CAABNEU

splithomereversible

Overview
WindFree Première+ is a wall-mounted split air conditioner designed for precise, draft-free cooling with advanced sensing and smart climate management. The refreshed Grid Design and two colour options (Essential White, Soapstone Charcoal) support seamless integration into modern interiors. WindFree™ Cooling disperses air through thousands of micro-holes to deliver gentle, uniform comfort.

AI-driven features

• AI Auto Comfort: Analyses room conditions, usage patterns and external temperature to automatically select WindFree™, Fast Cooling, Normal Cooling or Heating for stable comfort and fewer manual adjustments.
• AI Motion Wind: Triple-blade Motion Wings create an optimized air outlet structure; redesigned assembly increases inlet area by ~10% and discharge speed by ~15%, extending vertical and horizontal adjustment angles.
• Radar Sensor: Radar-based motion sensor detects distance, angle and activity of up to two occupants to enable occupancy-aware airflow when AI Auto Comfort is active.

WindFree™ Cooling
WindFree™ Cooling mode spreads air gently through thousands of micro-holes, creating a low-air-speed “still air” environment that reduces drafts and noise while maintaining comfort.

Air quality and filtration
The indoor unit integrates an upgraded 4-in-1 Care Filter (evolution of Tri-Care Filter) with a silver zinc zeolite layer to capture fine dust including PM2.5, trap allergens and help reduce certain viruses and bacteria. The system also includes Easy Filter Plus (anti-bacterial) and Auto Clean (self-cleaning).

Connectivity and smart control
Wi‑Fi is embedded and SmartThings integration enables remote control, mode selection and monitoring via the SmartThings app. Voice control is supported where available. AI features require Wi‑Fi and a SmartThings account.

Key features summary

• Refined Grid Design; two colour options (Essential White, Soapstone Charcoal)
• WindFree™ Cooling with improved micro-holes design
• Radar motion sensor for occupancy-aware airflow
• AI Motion Wind with triple-blade Motion Wings
• 4-in-1 Care Filter with PM2.5 capture and silver zinc zeolite
• SmartThings connectivity, Wi‑Fi embedded, AI Auto Comfort

Caractéristiques / spécifications techniques

• Model family name: WindFree Première+
• Available capacities (indoor unit options): 2.0 kW, 2.5 kW, 3.5 kW
• Displayed product variant capacity on this page: 2.0 kW
• Capacity (Cooling): 6800 Btu/hr (2.0 kW)
• Capacity (Heating): 7500 Btu/hr (2.2 kW)
• Energy classes (heating / cooling): indicated as A+++
• Sound Power Level (Indoor, Cooling): 56 dBA
• Noise Level (Indoor, High/Low): 34 / 19 dBA
• Power source: 1 Phase, 220-240 V, 50 Hz
• Power consumption (Cooling): 40 W
• Power consumption (Heating): 40 W
• Operating current (Cooling): 0.4 A
• Operating current (Heating): 0.4 A
• Gross dimension (Indoor, W x H x D): 950 x 375 x 320 mm
• Net dimension (Indoor, W x H x D): 889 x 299 x 230 mm
• Gross weight (Indoor): 13.2 kg
• Net weight (Indoor): 11.3 kg
• Moisture removal: 0.8 l/hr
• Air circulation (Cooling): 9.6 m3/min
• Refrigerant type: R32 (contains fluorinated greenhouse gases, GWP = 675)
• Air direction control (Up/Down): Auto
• Air direction control (Left/Right): Auto
• Air flow control step (Cool/Fan): 5 / 4
• PM1.0 Filter: No
• Tri Care Filter: No (replaced / evolved)
• 4-in-1 Care Filter: Yes (includes PM2.5 capture with silver zinc zeolite)
• Easy Filter Plus (Anti-Bacteria): Yes
• Auto Clean (Self Cleaning): Yes
• Smart features: Wi-Fi embedded: Yes; SmartThings app support: Yes; AI Auto Cooling: Yes; Motion Detect Sensor: Yes
• Operating modes: Auto Mode: Yes; Fast Cool: Yes; Good Sleep: Yes; Eco Mode: No; Dehumidification: Yes; Fan Mode: Yes; Quiet: Yes
