Commercial condensing unit AJ040TXJ2KG/EU

residentialair-cooledmulti-split

Product

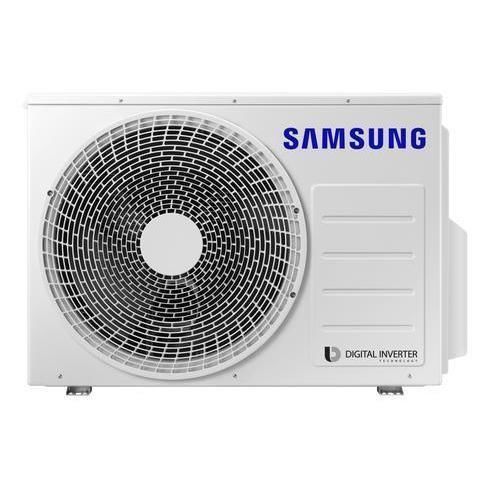

Outdoor unit AJ040TXJ2KG/EU. Capacity displayed on page: 4.0 kW. Available capacities: 4.0 kW, 5.0 kW, 5.2 kW, 6.8 kW, 8.0 kW, 10.0 kW.

General information

• Type: FREE JOINT MULTI
• Outdoor unit model name: AJ040TXJ2KG/EU
• Available power supply: Single-phase
• System / Mode: HEAT PUMP
• Nominal performance: 1.50 HP

Performance / Capacity

• Cooling capacity: 4.00 kW
• Heating capacity: 4.20 kW

Power Input

• Cooling: 0.90 kW
• Heating: 0.90 kW

Current Input

• Cooling: 4.10 A
• Heating: 4.10 A

Power / Protection values

• MCA (Minimum Circuit Amps): 9.80 A
• MFA (Maximum Fuse Amps): 11.25 A

Energy Efficiency

• EER (Cooling): 4.44 W/W
• COP (Heating): 4.67 W/W
• Energy grade (Cooling): 8.54 (A+++)
• Energy grade (Heating): 4.64 (A++)

Fan

• Type: Propeller fan / BLDC
• Motor output: 40 W
• Air flow rate (High / Mid / Low): 29.7 CMM (494 l/s)

Piping Connections

• Liquid pipe: Ø 6.35 mm × 2 (1/4" × 2)
• Gas pipe: Ø 9.52 mm × 2 (3/8" × 2)
• Maximum installation length: 30 m
• Maximum installation height: 15 m

Field Wiring

• Power source wire: 2.5 mm²
• Transmission cable: 0.75 ~ 1.0 mm²

Refrigerant

• Type: R32 (contains fluorinated greenhouse gases, GWP = 675)
• Factory charge: 0.98 kg
• Factory charge (tCO2e): 0.66 tCO2e

Sound

• Sound pressure: 45 dBA
• Sound power level: 60 dBA

External Dimension (Outdoor Unit)

• Net weight: 32.0 kg
• Net dimensions (WxHxD): 790 × 548 × 285 mm

Operating Temperature Range

• Cooling: -10.0 ~ 46.0 °C
• Heating: -15.0 ~ 24.0 °C

Smart / Connectivity

• WiFi kit: N/A
• SmartThings app support: N/A

Additional information shown on page

• Available capacity selection links on page for variants: 4.0KW (active), 5.0KW, 5.2KW, 6.8KW, 8.0KW, 10.0KW
• Energy label images for heating and cooling classes are shown on the product header

Technical specifications

• Model name: AJ040TXJ2KG/EU
• Type: FREE JOINT MULTI
• System / Mode: HEAT PUMP
• Nominal performance: 1.50 HP
• Cooling capacity: 4.00 kW
• Heating capacity: 4.20 kW
• Power input (Cooling / Heating): 0.90 kW / 0.90 kW
• Current input (Cooling / Heating): 4.10 A / 4.10 A
• MCA / MFA: 9.80 A / 11.25 A
• EER / COP: 4.44 / 4.67
• Energy grades: Cooling A+++, Heating A++
• Fan type & motor: Propeller fan / BLDC, 40 W
• Air flow rate: 29.7 CMM (494 l/s)
• Piping: Liquid 6.35 mm ×2 (1/4" ×2), Gas 9.52 mm ×2 (3/8" ×2)
• Max piping length / height: 30 m / 15 m
• Field wiring: Power source 2.5 mm²; Transmission cable 0.75 ~ 1.0 mm²
• Refrigerant: R32, factory charge 0.98 kg (0.66 tCO2e)
• Sound pressure / power: 45 dBA / 60 dBA
• Net weight & dimensions: 32.0 kg; 790 × 548 × 285 mm
• Operating temp range cooling / heating: -10.0 ~ 46.0 °C / -15.0 ~ 24.0 °C
• WiFi kit / SmartThings app support: N/A
