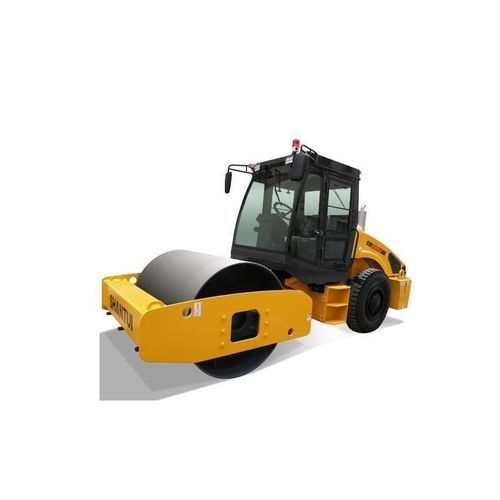

Single-cylinder roller compactor SR08MA

articulatedvibratory

Product
SR08MA single-drum vibratory road roller designed for efficient compaction of granular and semi-cohesive materials in road construction projects.

Key features

• Mechanically-driven automotive gearbox with synchronizer for light, smooth gear shifting.
• Hydraulic vibration system with single frequency and single amplitude and a large excitation force (85 kN) for excellent compaction performance.
• Hydraulic steering and articulated frame for compact dimensions and flexible maneuvering.
• Rear hood opens at a large angle for easy maintenance; standard cab with optional dual-purpose air conditioner for operator comfort.

Applications

• Compaction of engineering foundations for highways, urban and rural roads.
• Suitable for non-cohesive materials such as sand, gravel and crushed stone, as well as semi-cohesive materials.

Technical specifications

• Model: SR08MA
• Type: Single-drum road roller
• External dimensions (mm): 5130×1830×2570
• Engine brand: Xinchai
• Power/speed (kW/rpm): 42/2200
• Operating weight (kg): 8000
• Front/rear load distribution (kg): 3850/4150
• Vibration frequency (Hz): 42
• Minimum turning radius (mm): 5500
• Excitation force (kN): 85
• Amplitude (mm): 0.7
• Gradeability: 0.25
• Speed (km/h): Forward: 2.2/4.2/7.5/12.5/15.5; Reverse: 2.5
• Emissions: EU Stage II (as indicated per China)
