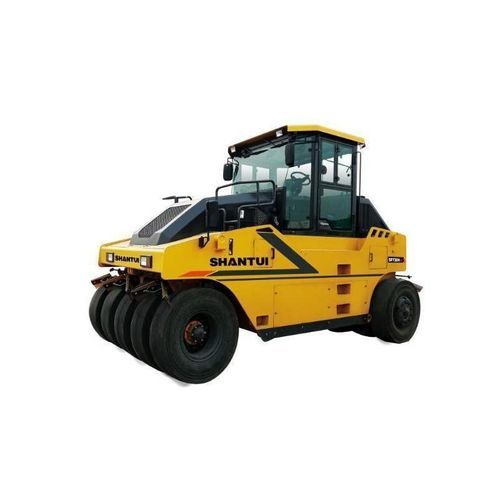

Pneumatic tired roller compactor SRT30H-C6

for soil

Product overview
Pneumatic tyre road roller SRT30H-C6 designed for uniform compaction across diverse site conditions. Suitable for compacting lime-ash soil, water-stabilized materials and asphalt. Key systems and service points are arranged for accessibility and safe operation.

Key features

• Hydraulic drive and compaction: Hydraulic drive enables smooth start/stop with low impact and consistent compaction; front tyre assembly with swaying structure ensures uniform coverage; four-stage braking system for reliable stopping; rotationally molded water tank resists blockage and maintains cleanliness.
• Operation and maintenance: Controls (handle, switches, seat, steering) integrated for ergonomic operation; hydraulic filter elements, water pump, air reservoir, battery and air filter accessible by opening the hood; lubrication points routed externally to simplify maintenance.
• Adaptability: Designed for a range of materials and working environments including plains and mountainous regions.

Technical specifications

• Model: SRT30H-C6
• External dimensions (mm): 4920 × 2895 × 3410
• Engine brand: Weichai
• Power/speed (kW/rpm): 147 / 2000
• Operating weight (kg): 30000
• Minimum operating mass (kg): 16450
• Water tank volume (L): 630
• Minimum turning radius (mm): 8800
• Compaction width (mm): 2750
• Ground pressure (kPa): 200–460
• Gradeability: 0.22
• Speed (km/h): 0–6, 0–13
• Emissions: EU stage IIIA

Typical applications

• Base and sub-base compaction, asphalt rolling, road construction, embankments and airport pavements where pneumatic tyre rolling is required.
