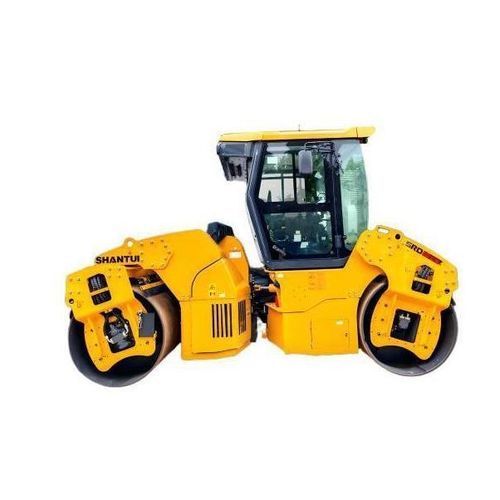

Tandem roller compactor SRD10-C6
vibratoryarticulated

Tandem roller compactor - SRD10-C6 - SHANDONG SHANTUI CONSTRUCTION MACHINERY IMP&EXP CO.,LTD - vibratory / articulated
Tandem roller compactor - SRD10-C6 - SHANDONG SHANTUI CONSTRUCTION MACHINERY IMP&EXP CO.,LTD - vibratory / articulated
Add to favorites
Compare this product

Characteristics

Type
tandem
Options
vibratory, articulated
Operating weight

10,300 kg
(22,707.6 lb)

Engine power

92 kW
(125.09 hp)

Description

Overview
  • SRD10-C6 tandem vibratory roller engineered for uniform compaction of asphalt surface courses. Hydraulic dual drive and dual-amplitude vibration with electronically controlled start deliver consistent density across the mat. Hydraulic articulated steering provides maneuverability in confined sites.


Operator comfort and maintenance
  • Large-capacity anti-corrosion water tank for intermittent sprinkler operation; wide-opening rear hoods on both sides for easy access to service points; operator console and seat rotate 90° for improved visibility during edge compaction.


Applications
  • Designed for compaction and repair of asphalt pavements: highways, airports, urban and intercity roads, county and township roads, stadiums and industrial sites.


Technical specifications
  • Model: SRD10-C6
  • External dimensions (with cab): 4875 mm × 1940 mm × 3100 mm; (without cab): 4875 mm × 1940 mm × 2500 mm
  • Engine brand: Weichai
  • Rated power / speed: 92 kW / 2200 rpm
  • Operating weight: 10,300 kg
  • Front static linear load: 5100 kg
  • Rear static linear load: 5200 kg
  • Vibration frequency (low/high): 40 / 55 Hz
  • Excitation force: 115 / 75 kN
  • Amplitude: 0.8 / 0.35 mm
  • Minimum turning radius: 4220 mm
  • Gradeability: 35%
  • Travel speed (Forward/Reverse): 0–6 km/h, 0–15 km/h
  • Emissions standard: Tier 3 (China)
