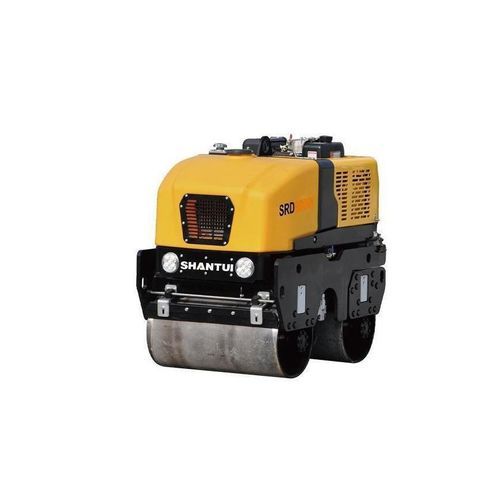

Vibratory roller compactor SRD900Wfor soil
Add to favorites
Compare this product
Characteristics
- Options
- vibratory, for soil
- Operating weight
870 kg
(1,918 lb)- Engine power
8 kW
(10.88 hp)
Description
Overview
Characteristics
Parameters
- The SRD900W is a mini compactor engineered for confined and narrow-area operations, suitable for ditch backfilling, underground works, road corner construction and rural building tasks.
Characteristics
- Remote-control system with automatic-control capability provides stable operation in restricted sites.
- Special resin scraper designed for extended wear life during continuous compaction cycles.
- Accessible maintenance: service points are logically arranged and the hood opens for easy inspection and servicing.
- Compact working radius and good manoeuvrability for narrow trenches and confined construction zones.
Parameters
- Model: SRD900W
- External dimensions (mm): 1120×755×1100
- Engine brand: Changchai
- Power/speed (kW/rpm): 8/3600
- Operating weight (kg): 870
- Front and rear static linear loads (N/cm): 52/54
- Vibration frequency low/high (Hz): 60
- Minimum turning radius (mm): /
- Excitation force (kN): 20
- Amplitude (mm): 0.5
- Gradeability: 0.3
- Speed (km/h): 0-1.2, 0-3.6
- Emissions: EU stage II (as per China standards)
