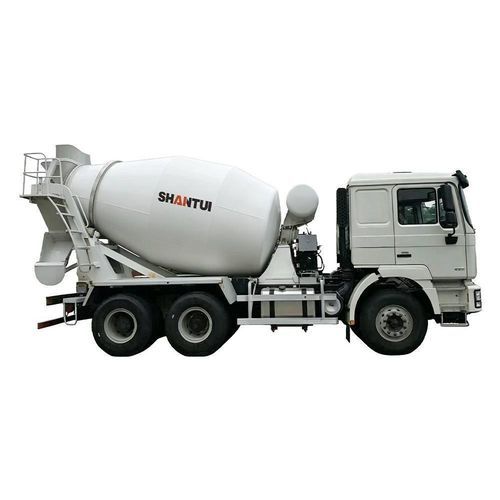

Diesel mixer truck CR3008

for concrete

Overview
The CR3008 is a concrete truck mixer engineered for on‑site transport and continuous mixing with a rated loading capacity of 8 m³. It is built on a refitted Sinotruck/Shacman chassis and powered by a Weichai 350 Ps engine to meet construction fleet requirements.

Key characteristics

• Chassis: Refitted Sinotruck / Shacman class II–V chassis adapted for mixer installation and heavy load cycles.
• Engine: Weichai 350 Ps engine with Bosch G-II common‑rail injection (ECD17).
• Fuel efficiency: Optimised combustion and common‑rail injection provide an economic RPM band at 1200–1800 RPM for reduced consumption.

Mixing drum

• The drum supports the rated 8 m³ load under standard slopes (14%) without overflow. Constructed from BW300TP high‑strength wear‑resistant steel and robot‑welded for consistent welding quality. Residual discharge rate <0.5%. Charging speed >5 m³/min; discharging speed >2.6 m³/min.

Blades and frame

• Helical blades formed on high‑strength wear‑resistant plates with variable pitch and concave hyperboloid geometry for improved mixing. The frame is designed by finite element analysis, split at the front to reduce stress concentration and made from 16Mn steel for increased strength and durability.

Technical parameters
Curb weight (kg) | 11500
Rated loading capacity (m³) | 8
Maximum feeding speed (m³/min) | 5
Machine dimensions (mm) | 8700 x 2520 x 3850
Engine power (Ps) | 350
Fuel consumption (L/100 km) | 45
Maximum discharging speed (m³/min) | >2.6
Chassis | Refitted Sinotruck/Shacman class II–V
Engine | Weichai with Bosch G-II common‑rail injection (ECD17)
Drum material | BW300TP high‑strength wear‑resistant steel; robot welded; residual discharge <0.5%
Frame material | 16Mn steel; finite‑element optimized structure

Application cases
Typical use includes road, bridge and railway construction and general civil works where on‑site mixing and transport efficiency are required. Project references and case examples are available on the original product page.

Technical specifications

• Curb weight: 11500 kg
• Rated loading capacity: 8 m³
• Maximum feeding speed: 5 m³/min
• Maximum discharging speed: >2.6 m³/min
• Machine dimensions: 8700 x 2520 x 3850 mm
• Engine power: 350 Ps
• Fuel consumption: 45 L/100 km
• Chassis: Refitted Sinotruck/Shacman class II–V
• Engine: Weichai with Bosch G-II common‑rail (ECD17)
• Drum material: BW300TP steel; robot welded; residual discharge <0.5%
• Frame material: 16Mn steel; FE‑optimized
