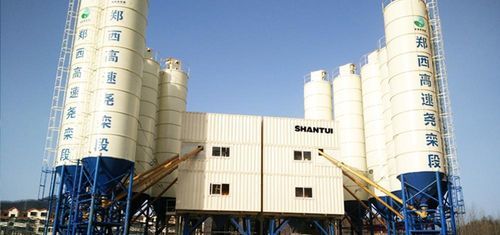

Fixed concrete mixing plant HZS60-3B

Product
HZS60-3B Concrete Batching Plant

Characteristics

• Configuration selling point: Modular structure enabling fast on-site installation and convenient transportation. Aggregate measurement combines coarse and fine weighing with jitter measurement technology for improved dosing accuracy.
• Ease of maintenance and operation comfort: Arch-breaking vibration mechanism with hinged lining plate to prevent arching in the sand bin. Discharge outlet equipped with an adjustable material gate for precise control of discharge flow.
• Adaptability to diverse working conditions: Aggregate measurement system suitable for varied materials and site conditions. Widely used in high-speed rail, highway and other infrastructure projects.

Parameters
Model | HZS60-3B
Rated production capacity (t/h) | 60
Nominal capacity of mixing unit (kg) | 1000
Overall power (kW) | 100
Admixture weighing range and accuracy (kg) | 20 ±1%
Aggregate weighing range and accuracy (kg) | 1000 ±2%
Cement weighing range and accuracy (kg) | 500 ±1%
Water weighing range and accuracy (kg) | 200 ±1%

Application Cases

• SjHZS090-3B for SMB-Winning Consortium Dapilon–Santou railway project in Guinea
• Shantui Janeoo for China–Maldives Friendship Bridge construction
• SjLBZ160-3B asphalt mixing plant for a national key airport project in Tanzania
• SjLBZ80-3B asphalt mixing plant for Fergana State Expressway in Uzbekistan
• SjHZS50-3E concrete mixing plant for expressway construction in Algeria
• HZS100-5Y self-erected mobile concrete mixing plant for a new district housing project in Thailand

Technical specifications

• Model: HZS60-3B
• Rated production capacity: 60 t/h
• Nominal capacity of mixing unit: 1000 kg
• Overall power: 100 kW
• Admixture weighing range and accuracy: 20 ±1%
• Aggregate weighing range and accuracy: 1000 ±2%
• Cement weighing range and accuracy: 500 ±1%
• Water weighing range and accuracy: 200 ±1%
• Modular design for fast installation and convenient transport
• Aggregate measurement: coarse and fine weighing with jitter measurement technology
• Arch-breaking vibration mechanism with hinged lining plate to prevent arching
• Adjustable discharge outlet gate for precise flow control
• Suitable for high-speed rail, highway and various infrastructure projects
