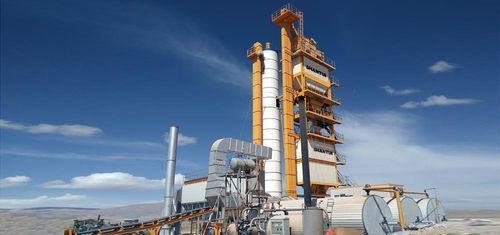

Asphalt plant LB2000-3B

Overview
The LB2000-3B is an asphalt mixing plant with a modular structure for simplified transport and on-site assembly. It integrates an efficient vibrating screen, a boiling-type mixing unit and a long-life energy-saving drying drum. The plant includes a baghouse dust removal configuration to reduce emissions and improve energy efficiency.

Maintenance and Operation
The unit is fitted with a maintenance-free linear vibrating screen and a centralized lubrication system for key bearings and gearboxes. The control system supports dual-machine dual-control automatic operation and one-touch startup to streamline commissioning and daily operation.

Applications
Designed for asphalt concrete pavement production for highways, municipal roads, airports and port works. Suitable for contractors and public works companies requiring continuous production at 160 t/h.

Parameters (table)
Parameter | LB2000-3B
Rated production capacity (t/h) | 160
Mixing unit capacity (kg) | 2000
Overall power (kW) | 420
Fuel consumption (kg/t) | ≤6.5
Aggregate weighing range and accuracy (kg) | 2000 ±0.5%
Cement weighing range and accuracy (kg) | 300 ±0.3%
Asphalt weighing range and accuracy (kg) | 200 ±0.2%

Characteristic highlights

• Modular design for convenient transport and rapid installation
• Efficient linear vibrating screen and boiling-type mixing unit for homogeneous mixing
• Energy-saving drying drum with extended service life
• Baghouse dust removal configuration for compliant emissions control
• Centralized lubrication system to reduce maintenance intervals
• Dual-machine, dual-control automatic system with one-touch startup for simplified operation
• Stable core components to ensure reliable performance in varied site conditions

Technical specifications

• Model: LB2000-3B
• Rated production capacity: 160 t/h
• Mixing unit capacity: 2000 kg
• Overall power: 420 kW
• Fuel consumption: ≤6.5 kg/t
• Aggregate weighing range and accuracy: 2000 ±0.5%
• Cement weighing range and accuracy: 300 ±0.3%
• Asphalt weighing range and accuracy: 200 ±0.2%
