Diesel mixer truck CR4102
for concrete

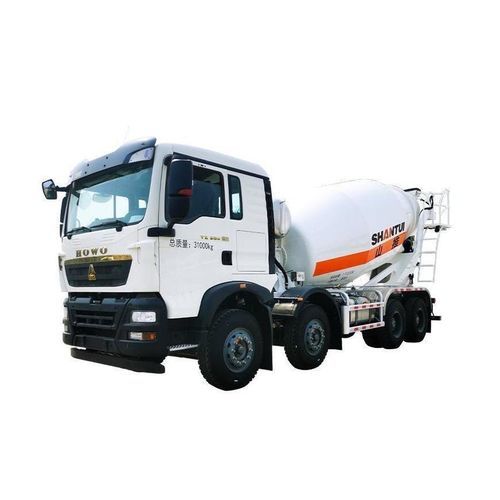

Diesel mixer truck - CR4102 - SHANDONG SHANTUI CONSTRUCTION MACHINERY IMP&EXP CO.,LTD - for concrete
Diesel mixer truck - CR4102 - SHANDONG SHANTUI CONSTRUCTION MACHINERY IMP&EXP CO.,LTD - for concrete
Add to favorites
Compare this product

Characteristics

Motor type
diesel
Applications
for concrete
Capacity.

12 m³
(423.78 ft³)

Description

Overview
CR4102 truck mixer designed for transporting and mixing concrete in road and site operations. Model: CR4102.

Key parameters (summary)
  • Curb weight (kg): 13900
  • Loading capacity (m³): 12
  • Maximum feeding speed (m³/min): 5

Characteristics
Blade and frame
  • Blades made of high-strength wear-resistant steel plates with a logarithmic helical profile of variable pitch and concave hyperboloid shaping for effective mixing.
  • Frame designed using finite element analysis; split front reduces stress concentration and improves overall rigidity. Frame material: 16Mn steel.

Stirring drum
  • Large-capacity drum that can be loaded to rated volume without overflow under normal operating conditions (slope 14%).
  • Drum manufactured from BW300T high-strength wear-resistant steel plates and robot welded; designed service life ≥10 years.
  • Residual discharge rate <0.5% (better than 1% national standard); concrete homogeneity ensured with charging speed >5 m³/min and discharging speed >2.6 m³/min.

Chassis
  • Chassis refitted on Sinotruck/Shacman class II–V platforms, providing appropriate power, fuel economy and operational reliability.
  • Engine option: Weichai; Bosch G-II common-rail fuel injection (ECD17); economic RPM zone 1200–1800 RPM; fuel consumption: 48 L/100km.

Technical data
  • Curb weight: 13900 kg
  • Loading capacity: 12 m³
  • Maximum feeding speed: 5 m³/min
  • Maximum discharging speed: >2.6 m³/min
  • Machine dimensions: 97100 x 2520 x 3950 mm
  • Machine power: 370 Ps
  • Fuel consumption: 48 L/100km
  • Stirring drum: BW300T wear-resistant steel, robot welded, service life ≥10 years
  • Blade and frame: wear-resistant steel plates, 16Mn frame, finite element design, split front
  • Chassis: refitted Sinotruck/Shacman options; Weichai engine; Bosch G-II common-rail (ECD17); economic RPM 1200–1800 RPM
