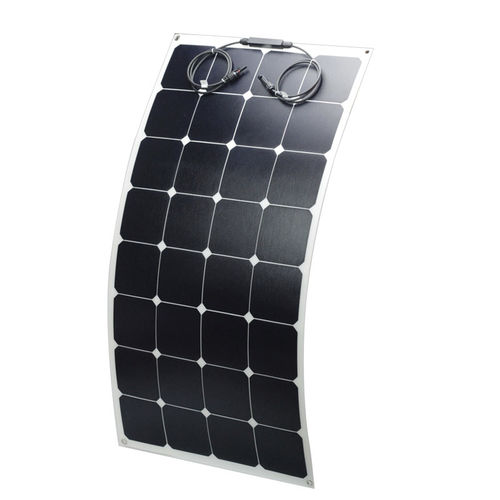

Flat PV solar panel EGO S100W
flexibleblackvertical

flat PV solar panel
flat PV solar panel
flat PV solar panel
flat PV solar panel
Add to favorites
Compare this product


Characteristics

Technology
flat
Options
flexible
Other characteristics
black, vertical
Peak power (Wp)

Min.: 1 W

Max.: 100 W

Description

It's one of the best seller eGo S100w has the best size that is suitable for RV,the voltage is 18V which is better for 12v battery. Back contact solar cells,efficienty is over 22.4%; resilient,thin,light and aerodynamic design; ETFE surface,more weather resistance; Waterproof Jbox that is full of silicon gel; Customize is acceptable. RV,camping,outdoor For all 12v battery or powerload Marine,boat,yacht Public sports center,square etc Electric bus station,electrical car station Good for other mobile or outdoor use AHONY flexible solar panel 100w uses SunPower cell which has high efficiency over 22.4%. The surface is ETFE with longer lifespan than other material. Solar Cell - SunPower Maxeon Gen III Back Contact Cell Cell Array[Pcs] - 4*8 Cell Efficiency - 22.60% Size[mm] - 540x1060x3 Max Power Voltage Vmp[V] - 18.56 Max Power Current Imp[A] - 5.39 Open Circuit Voltage Voc[V] - 21.90 Short Circuit Current Isc[A] - 5.82 Net.Weight[kg] - 1.5 NOCT[ - 45±2 Operating Temperature[ - -40/+85 Temperature Coefficient Pmax[%/ - -0.3 Temperature Coefficient Voc[[%/ - -1.74mV Temperature Coefficient Isc[[%/ - 0.05 Maximum System Voltage[V] - 100 V Maximum Reverse Current[V] - 12A Certification - CE ROHS Surface/Backsheet - ETFE/TPT Cables and Connectors - Jbo IP65,0.9m cable with 1 pair of MC4 connector Standard Test Conditions - STC: 1000W/m², AM 1.5g and cell temp 25°C
