Product Name

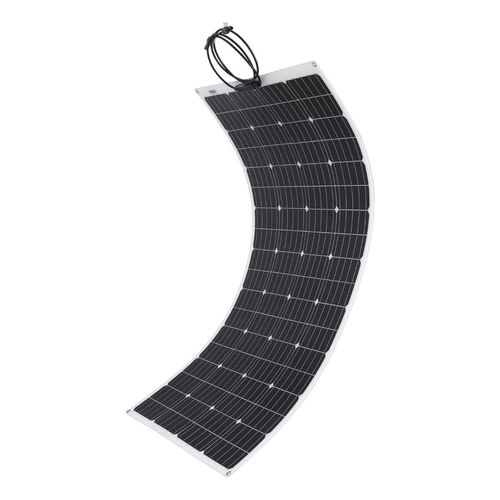

semi flexible solar panel
Maximum Power[Wp]
180
Solar Cell
Monocrystalline solar cell
Cell Array[Pcs]
4*9
Cell Efficiency
21.70%
Size[mm]
660*1425*3
Max Power Voltage Vmp[V]
20.26
Max Power Current Imp[A]
8.88
Open Circuit Voltage Voc[V]
24.01
Short Circuit Current Isc[A]
9.60
Net.Weight[kg]
2.4
Power tolerance[
±5%
NOCT[
45±2
Operating Temperature[
-40/+85
Temperature Coefficient Pmax[%/
-0.41
Temperature Coefficient Voc[[%/
-0.32
Temperature Coefficient Isc[[%/
0.04
Maximum System Voltage[V]
1000 V
Maximum Reverse Current[V]
20A
Certification
CE ROHS
Surface/Backsheet
ETFE/white plastic
Maximum bend radius(θ)
20°
Cables and Connectors
Jbox IP67,0.9m cable and 1 pair of MC4 connector
