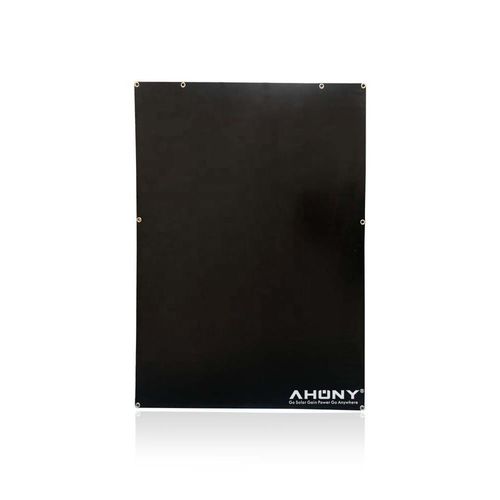

Product Name - Semi-Flexible Solar Panel
Maximum Power[Wp] - 70
Solar Cell - SunPower Maxeon Gen III Back Contact Cell
Cell Array[Pcs] - 4*10
Cell Efficiency - 24.4%
Size[mm] - 540x705x3
Max Power Voltage Vmp[V] - 23.20
Max Power Current Imp[A] - 3.02
Open Circuit Voltage Voc[V] - 27.38
Short Circuit Current Isc[A] - 3.26
Net.Weight[kg] - 1.1
Power tolerance[ - 0 to 3%
NOCT[ - 45±2
Operating Temperature[ - -40/+85
Temperature Coefficient Pmax[%/K] - -0.3
Temperature Coefficient Voc[[%/K] - -1.74mV
Temperature Coefficient Isc[[%/K] - 0.05
Maximum System Voltage[V] - 100 V
Maximum Reverse Current[V] - 10A
Certification - CE ROHS
Surface/Backsheet - Japan ETFE+fibreglass(white or black)+PET(white or black)
Maximum bend radius(θ) - 10-20°
Cables and Connectors - PV-XC502 Jbox IP65,0.9m cable and 1 pair of MC4 connector
Standard Test Conditions - STC: 1000W/m², AM 1.5 and cell temp 25°C
Other notes - round corner R10,with eyelets
Package - 1pcs/Polyethylene foam(EPE Foam),then in 1 carton box
