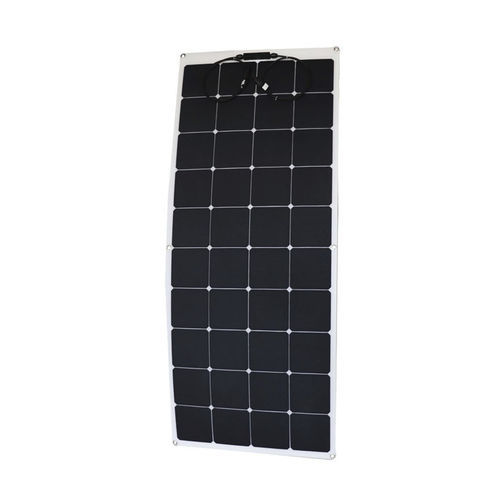

Monocrystalline PV solar panel eGo S130w

flexibleblack

Maximum Power[Wp] - 130 Solar Cell - SunPower Maxeon Gen III Back Contact Cell Cell Array[Pcs] - 4*9 Cell Efficiency - 24.4% Size[mm] - 540x1200x3 Max Power Voltage Vmp[V] - 22.03 Max Power Current Imp[A] - 5.91 Open Circuit Voltage Voc[V] - 26.0 Short Circuit Current Isc[A] - 6.26 Net.Weight[kg] - 3.0 Power tolerance[ - ±3% NOCT[ - 45±2 Operating Temperature[ - -40/+85 Temperature Coefficient Pmax[%/K] - -0.3 Temperature Coefficient Voc[[%/K] - -1.74mV Temperature Coefficient Isc[[%/K] - 0.05 Maximum System Voltage[V] - 100 V Maximum Reverse Current[V] - 20A Certification - CE ROHS, IEC for ETFE surface Surface/Backsheet - Japan ETFE/white(white is standard and most common,can be black too) Maximum bend radius(θ) - 30° Cables and Connectors - PV-XC502 Jbox IP65,0.9m cable and 1 pair of MC4 connector Standard Test Conditions - STC: 1000W/m², AM 1.5 and cell temp 25°C Other notes - round corner R10,with eyelets Warranty - Power output will be at least 95% after 5 years and more than 85% after 10 years,2 years repair/replacement.
