Wall-mounted acoustic panel AISFÓN PT

metalrectangularperforated

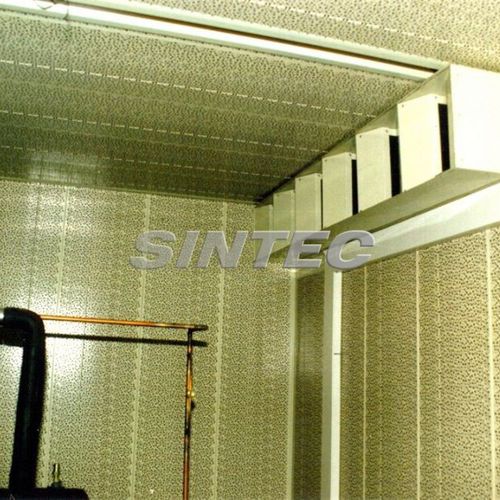

AISFÓN PT Soundproofing Panels AISFÓN PT panels are modular absorbing panels used for the acoustic conditioning of buildings. Manufactured using trays of pre-lacquered white (with optional RAL colours) galvanised steel panels. Multi-diameter perforated exterior providing superior soundproofing qualities in relation to similar products. The various diameters act upon a specific bandwidth achieving optimal results over a wide frequency range. Interior made from medium density rock wool with a black veil protection (PT-80). Other variables in this model come with a non-perforated tray panel (PT-70) or an absorbing sheet in combination with an absorbing material (only for ceiling fittings). Cada módulo tiene una anchura de 400 mm por 35 mm de espesor. La longitud se fabrica a la medida solicitada, con lo que se evita desperdicio de material. This panel is used in cladding panels and as an absorbing panel for false ceilings, in order to reduce the reverberation within a building as well as attenuating, via absorption, noise in halls. In the case of cladding panels, they are always placed on an existing surface and they are very useful when installed inside machinery rooms of civil engineering. Its main function is to absorb noise. The assembly is carried out by using steel plate in U- and Z-profiles. Installation is very easy and allows the creation of air chambers behind the panel, with a different separation, in order to diminish the required band width. AISFÓN PT 80 With a chamber of 50 mm AISFÓN PT 80 With a chamber of 35 mm
