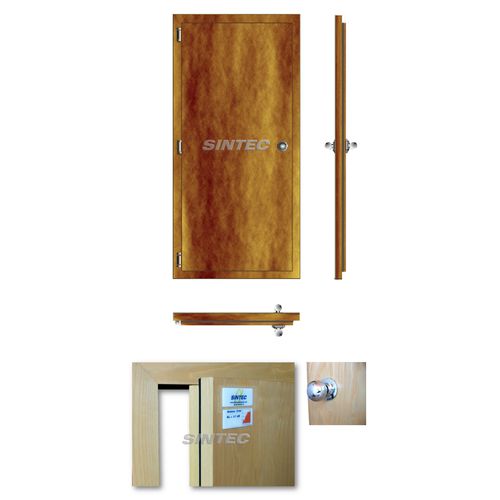

TCM model acoustic doors from SINTEC are made of wood and have been designed to offer the highest soundproofing levels in comparison with other similar doors.
The level of insulation and the quality offered are perfect to comply with all the acoustic requests from medical centres, offices, meeting rooms, etc., and generally from all those places where privacy and functionality are essential requirements.
Table of dimensions
Insulation graph RW 41dB
Composition
The sheet is composed of solid wood panels, which are internally separated by a spacer frame.
The internal composition is made of three layers containing different materials with insulating and absorbing properties.
The perimeter frame is made of solid wood of 80*70mm with a double closing ridge.
The sheet and frame fitting is made with a double sealing frame of high density neoprene. It includes internal air chambers in order to allow the compression of the material.
Zamak hinges, steel spin axis and nylon bearings.
Lock made of chrome duralumin with a pressure-regulated cam, with a working point in the centre of the sheet; or closing lock with knob or handle and a standard internal mechanism.
Exterior finishes
MDF wood prepared for painting.
Natural wood finish.
Neutral varnish finish.
APPLICATIONS
Offices.
Medical centres.
Meeting rooms.
Studies.
Hotels...
