Ribbed sheet metal URBAN SEAM®
steelfor facade claddingstanding seam

ribbed sheet metal
ribbed sheet metal
ribbed sheet metal
ribbed sheet metal
ribbed sheet metal
ribbed sheet metal
Add to favorites
Compare this product


Characteristics

Type
ribbed
Material
steel
Applications
for facade cladding
Options
standing seam

Description

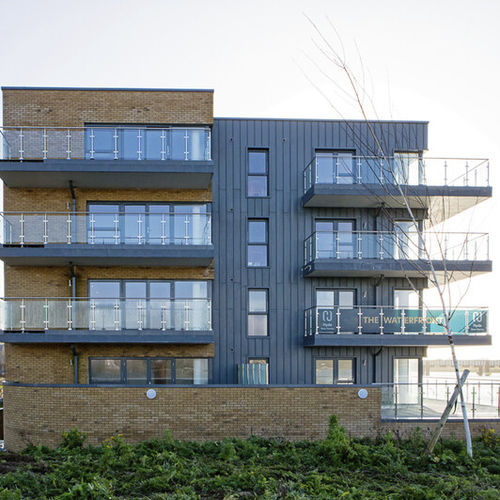

Limited combustibility wall system suitable for use on buildings over 18m tall. Tata Steel has taken its non-combustible Urban Seam® cladding sheet and incorporated it into a façade system comprising products that are classified as A1 or A2-s1,d0 and therefore meet the requirement of the latest Building Regulations. Fully supported standing seam cladding systems are typically supported by and fixed back to continuous plywood or OSB backing board. In the Urban Seam® Façade system the combustible backing board has been replaced by a non-combustible profiled steel deck. The lightweight profiled steel deck is fixed back to a helping hand rail and bracket system which in turn is fixed back to a typical steel frame system. The system has been independently verified by full scale CWCT testing for wind resistance, water tightness and hard & soft body impacts and also includes British Board of Agrement Approval for Colorcoat Prisma®. Made in the UK Manufactured in Shotton, North Wales, Urban Seam® standing seam façade system consists of an A1 rated Colorcoat Prisma® pre-finished steel fixed to a Trisobuild® D32s carrier sheet. This construction makes the system ideal for multi-occupancy apartments, student accommodation, hotels, and mixed use buildings. It also future proofs the cladding element from changes in building regulations. The Colorcoat Prisma® finish provides a stunning, but robust, aesthetic finish, with a contemporary colour palette. Quick build times are possible with neat crisp finishes to complement design and build choices.
