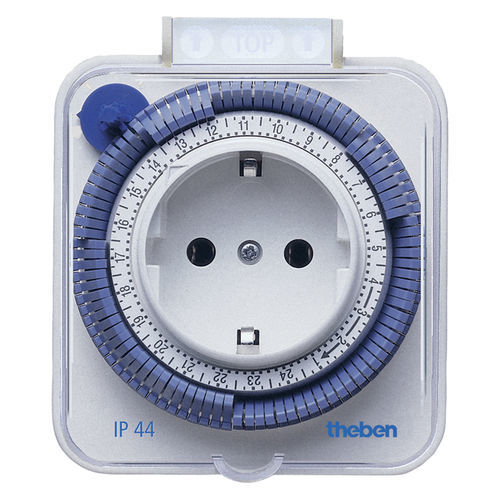

Analogue plug-in timer
1 channel
Without power reserve
Synchronised with mains
Use with earthed sockets
Switching preselection
Switching status display
Operating voltage - 230 V AC
Frequency - 50 Hz
Number of channels - 1
Installation type - Plug-in
Type of connection - Plug-in
Program - Daily program
Switching capacity at 250 V AC, cos φ = 1 - 16 A
Switching capacity at 250 V AC, cos φ = 0,6 - 4 A
Incandescent/halogen lamp load - 3500 W
LED lamp 8 W - 400 W
Shortest switching times - 15 min
Programmable every - 15 min
Time accuracy at 25 °C - Synchronised with mains
Type of contact - NO contact
Number of switching segments - 96
Stand-by consumption - ~0.8 W
Housing and insulation material - High-temperature resistant, self-extinguishing thermoplastic
Type of protection - IP 44
Protection class - II according to EN 60 730-1
Ambient temperature - -40°C ... 55°C
