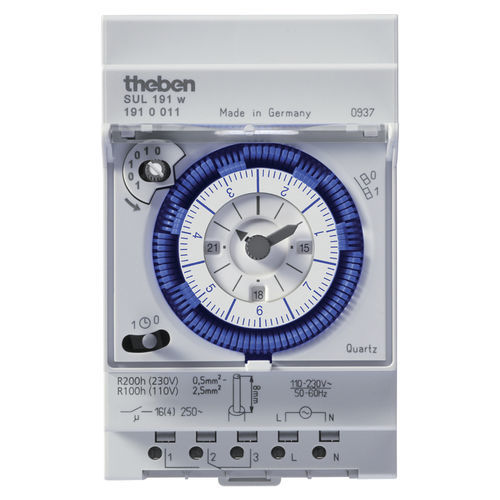

Analogue time switch
1 channel
Weekly program
With power reserve (NiMH rechargeable battery)
84 switching segments
Quartz controlled
Shortest switching time: 2 hours
Clock hands for time display and in addition 12/24 hour recognition
Simple summer/winter time correction
Time can be changed clockwise or anti-clockwise
DuoFix spring terminals
For 2 conductors each
Wire or strand (with or without wire end sleeve)
Wire diameter: 0.5 - 2.5 mm²
Button for releasing plug-in connection
Switching preselection
Manual switch with 3 positions: Continuous ON/AUTO/continuous OFF
Switching status display
Operating voltage - 110 – 230 V AC
Frequency - 50 – 60 Hz
Number of channels - 1
Width - 3 modules
Installation type - DIN rail
Type of connection - DuoFix spring terminals
Drive - Quartz-controlled stepper motor
Program - Weekly program
Power reserve - 3 days approx. 1.5 days at 110 V
Switching capacity at 250 V AC, cos φ = 1 - 16 A
Switching capacity at 250 V AC, cos φ = 0,6 - 4 A
Incandescent/halogen lamp load - 1100 W
LED lamp 8 W - 180 W
Shortest switching times - 2 h
Programmable every - 2 h
Time accuracy at 25 °C - ≤ ± 1 s/day (quartz)
Type of contact - Changeover contact
Switching output - Potential-free and phase-independent
Number of switching segments - 84
Stand-by consumption - ~0.5 W
Capacity loss max. - 1.3 W
Test approval - VDE
Housing and insulation material - High-temperature resistant, self-extinguishing thermoplastic
Type of protection - IP 20
Protection class - II according to EN 60 730-1
Ambient temperature - -20°C ... 55°C
