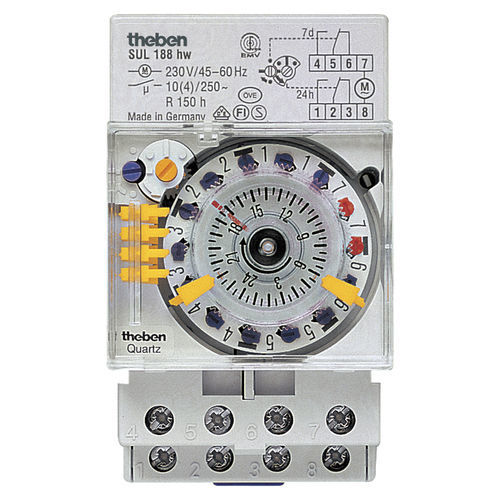

DIN rail programmer SUL 188 HW

Analogue time switch Daily/weekly program and 1/2 day OFF function for the weekdays 1 channel (with series connection of the 2 contacts) Tappets and turning segments Shortest switching time: 45 minutes (12 hours for the 1/2 day OFF function) 6 tappets included in delivery With power reserve (NiMH rechargeable battery) Quartz controlled Tappets Screw terminals Switching status display Operating indication Operating voltage - 230 V AC Frequency - 45 – 60 Hz Number of channels - 1 Width - 3 modules Installation type - DIN rail Type of connection - Screw terminals Drive - Quartz-controlled stepper motor Program - Daily program Power reserve - 3 days Switching capacity at 250 V AC, cos φ = 1 - 10 A Switching capacity at 250 V AC, cos φ = 0,6 - 4 A Shortest switching times - 45 min, 12 h Programmable every - 15 min, 12 h Time accuracy at 25 °C - ≤ ± 1 s/day (quartz) Type of contact - Changeover contact Switching output - Potential-free and phase-independent Stand-by consumption - ~0.5 W Test approval - VDE Housing and insulation material - High-temperature resistant, self-extinguishing thermoplastic Type of protection - IP 20 Protection class - II according to EN 60 730-1 Ambient temperature - -20°C ... 55°C
