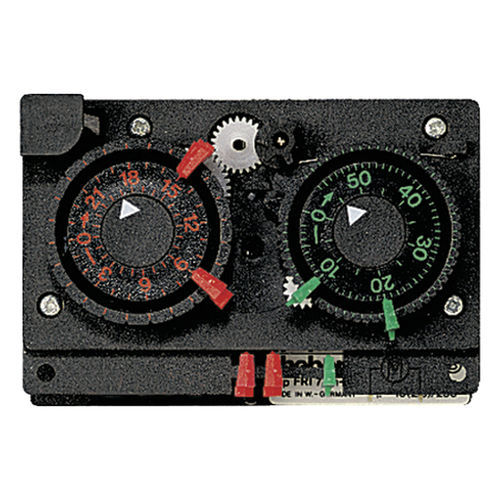

Analogue cooling time switch with daily and short time program
Tappet
2 separate switching discs
24 hour switching disc for hour preselection
60 minute switching disc for setting short contact duration
Operating voltage - 230 V AC
Frequency - 50 Hz
Number of channels - 1
Installation type - Drive with quick fastening for DIN rail
Type of connection - Screw terminals
Program - Daily and defrost program
Switching capacity at 250 V AC, cos φ = 1 - 16 A
Switching capacity at 250 V AC, cos φ = 0,6 - 2.5 A
Shortest switching times - 2 min, 1 h
Programmable every - 1 min, 1 h
Time accuracy at 25 °C - Synchronised with mains
Type of contact - Changeover contact
Switching output - Potential-free, not for SELV
Stand-by consumption - 0.9 W
Housing and insulation material - High-temperature resistant, self-extinguishing thermoplastic
Type of protection - IP 00
Protection class - II according to EN 60 730-1
Ambient temperature - -10°C ... 50°C
