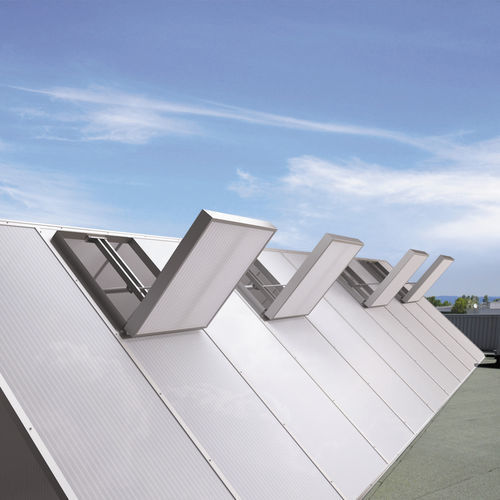

Aluminum smoke vent MONODELTA

smoke and heat extractorfor roof

MONODELTA is a single flap smoke vent suitable for the removal of large quantities of warm air and / or smoke from a building within a short period of time, daily ventilation and natural lighting. Suitable for utilization on shed style roofs. The vents are manufactured according to ISO 9001 quality control standards and comply with the European requirements for NSHE according to EN 12101-2. Endurance tests with 10,000 opening and closing cycles have proven its robust and functional design. The vents are formed from high quality corrosion resistant aluminium to ensure low maintenance requirements and watertightness. Various methods of operation using pneumatic or electric actuators are available. Available on large dimensions, up to 1250 x 3000 mm (width x length). TYPICAL APPLICATIONS Shed style roofs: 15/15, 30/30, 45/45 MATERIALS Tempered aluminium, sea water- and corrosion-resistant (EN AW 5754). Corrosion resistant bearings. Sealant is applied so that there is no freezing, enabling the equipment to have low air permeability at the same time. Note: aluminum is supplied untreated as standard. Possibility of being supplied with electrostatic painting (in any RAL color). DIMENSIONS Roof opening width: 500 – 1250 mm Roof opening length: 1000 – 3000 mm OPENING ANGLE Individual adjustable from 0° up to 85º CONTROLS NATURAL VENTILATION P2 – Double pipe compressed air operation M230V Electric motor
