Aluminum smoke vent VENTRA-F

polycarbonateglasssmoke and heat extractor

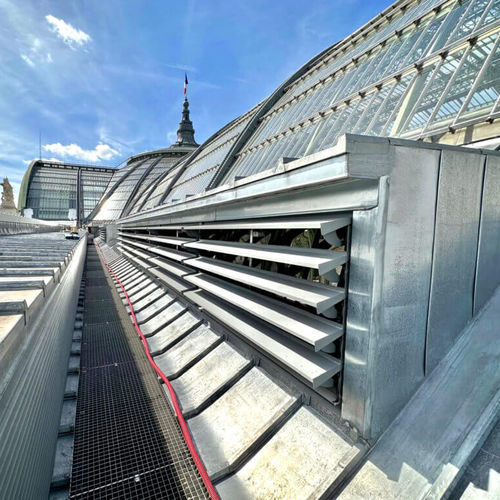

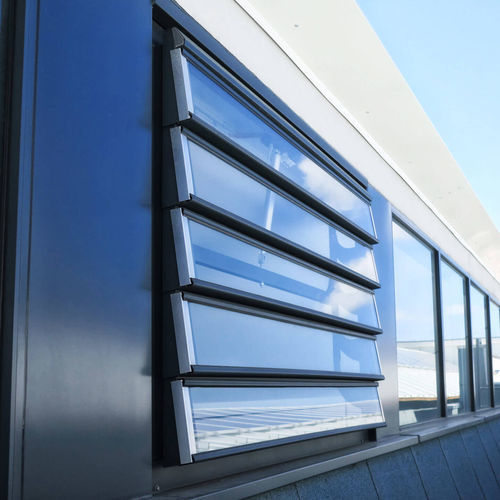

VENTRA F is a multi louvred ventilator (NSHEV) that provides an economic, non-powered method of ventilation, allowing the removal of large quantities of warm air and / or smoke from a building within a short period of time. The Ventra F is suitable for air feed (facade), air extraction (facade) and natural lighting. The vents are manufactured according to ISO 9001 quality control standards and CE approved according EN 12101-2..The vents are formed from high quality corrosion resistant aluminium, to ensure low maintenance requirements and watertightness. Various methods of operation using pneumatic or electric actuators are available. The ventilator design produces a versatile economic unit suitable for a wide range of applications. Available on large dimensions, up to 2400 x 3804 mm (width x length).
Filling of louvers can be in alumimium insulated, poycarbonat or single and double glazing.

TYPICAL APPLICATIONS
Versatile scope of applications on facades, with an installation angle close to 90º. Installations: industrial buildings, warehouses, logistics centres, shopping centres, atria, among others.

MATERIALS
Tempered aluminium, sea water- and corrosion-resistant (EN AW 5754).
Corrosion resistant bearings.
Built-in weather resistant hydrophobic tape.

Note: aluminum is supplied untreated as standard. Possibility of being supplied with electrostatic painting (in any RAL color).

DIMENSIONS
Facade opening width: 300 – 2400 mm
Facade opening length: 737 – 3804 mm ( 17 louvres, max.)
