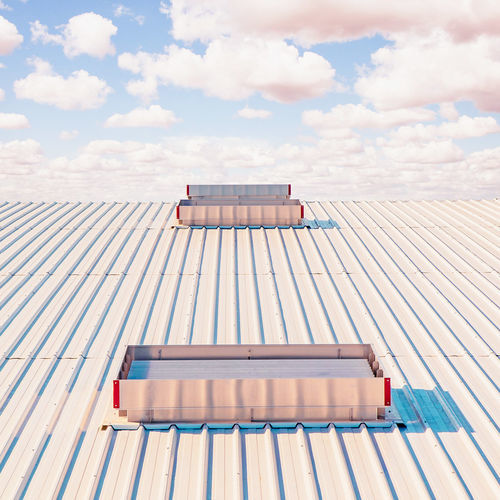

Aluminum smoke vent VENTRA

polycarbonateglasssmoke and heat extractor

VENTRA is a multi louvred ventilator that provides an economic, non-powered method of ventilation, allowing the removal of large quantities of warm air and / or smoke from a building within a short period of time. The Ventra is suitable for air feed (facade), air extraction (facade an roof) and natural lighting. The vents are manufactured according to ISO 9001 quality control standards.The vents are formed from high quality corrosion resistant aluminium to ensure low maintenance requirements and watertightness. Various methods of operation using pneumatic or electric actuators are available. The ventilator design produces a versatile economic unit suitable for a wide range of applications. Available on large dimensions, up to 2400 x 3826 mm (width x length). TYPICAL APPLICATIONS Versatile scope of applications on roofs and facades, with an installation angle range from 0º to 90º. Installations: Industrial buildings, warehouses, logistics centres, shopping centres, atria, among others. MATERIALS Tempered aluminium, sea water- and corrosion-resistant (EN AW 5754). Corrosion resistant bearings. Built-in weather resistant hydrophobic tape. Note: aluminum is supplied untreated as standard. Possibility of being supplied with electrostatic painting (in any RAL color)
