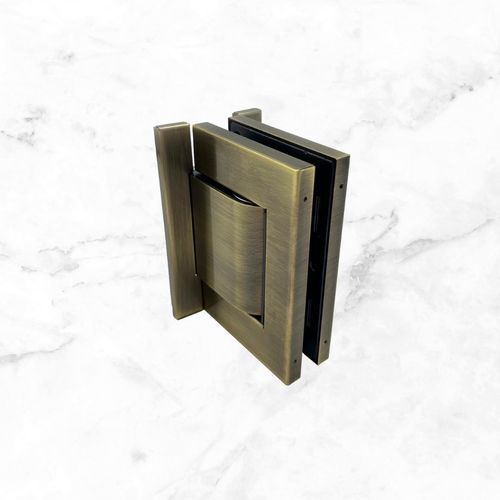

Door hinge H2201AT

stainless steelglassaluminum alloy

Hinges specifically designed for humid and saline environments, saunas, spas, etc. Hydraulic hinge with adjustable closing speed, with hold-open at 0º and ±90º, and self-closing from ±80º to 0º. Adjustable alignment of the closing position Thermo-constant hydraulic fluid, flash point 160°C, freezing point -40°C. Made of aluminum alloy through a stamping process and with a protective anodized treatment Decorative covers made of stainless steel AISI 316 Pivot pins made of stainless steel AISI 420 Stainless steel A2 screws Glass clamping gaskets made of PE material Certified according to UNE-EN 1154:2003/AC:2006, Grade 8 (500,000 cycles) Certified according to UNE-EN 1670:2007/AC:2008, Grade 5 – maximum corrosion resistance Finishes: Satin stainless steel – Bright stainless steel – Matte black lacquer Electrolytic finishes RAL colors Glass thickness up to 17.52 mm Without hold-open at ±90º
