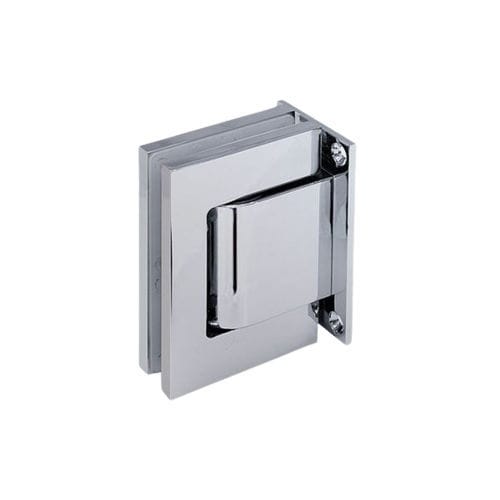

Door hinge H1207
stainless steelsatinglass

Door hinge - H1207 - Trivel - stainless steel / satin / glass
Door hinge - H1207 - Trivel - stainless steel / satin / glass
Door hinge - H1207 - Trivel - stainless steel / satin / glass - image - 2
Door hinge - H1207 - Trivel - stainless steel / satin / glass - image - 3
Add to favorites
Compare this product
Go to the Trivel website for more information

Characteristics

Product applications
door
Material
stainless steel, aluminum alloy, glass, satin
Market
home, commercial
Finish
silver finish, matte black
Style
contemporary
Opening angle
90°
Other characteristics
custom-made
Height

1,000 mm
(39.4 in)

Thickness

Min.: 8 mm
(0.3 in)

Max.: 12 mm
(0.5 in)

Maximum load

50 kg
(110.2 lb)

Description

Made of aluminum alloy through a stamping process. Stainless steel A2 screws. Glass clamping gaskets made of PE material. Certified according to UNE-EN 1154:2003/AC:2006, Grade 8 (500,000 cycles). Finishes: Bright anodized stainless steel – Matte silver anodized – Satin anodized stainless steel – Matte black anodized Other anodized finishes RAL colors Glass thickness up to 21.52 mm
