Door hinge H2204
stainless steelsatinglass

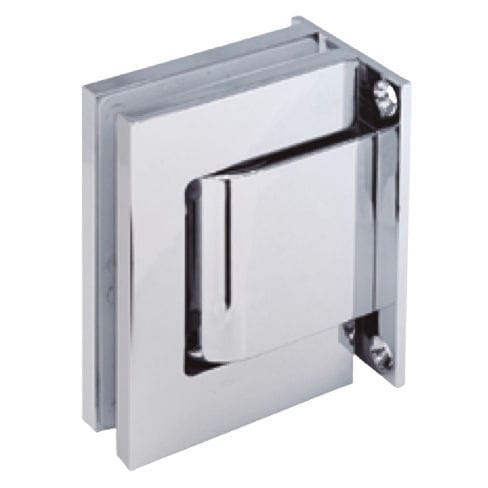

Door hinge - H2204 - Trivel - stainless steel / satin / glass
Door hinge - H2204 - Trivel - stainless steel / satin / glass
Door hinge - H2204 - Trivel - stainless steel / satin / glass - image - 2
Door hinge - H2204 - Trivel - stainless steel / satin / glass - image - 3
Add to favorites
Compare this product
Go to the Trivel website for more information

Characteristics

Product applications
door
Material
stainless steel, aluminum alloy, glass, satin
Market
home, commercial
Finish
matte black
Style
contemporary
Opening angle
90°
Other characteristics
custom-made
Height

1,000 mm
(39.4 in)

Thickness

Max.: 12 mm
(0.5 in)

Min.: 8 mm
(0.3 in)

Maximum load

50 kg
(110.2 lb)

Description

Hinges specifically designed for humid and saline environments, saunas, spas, etc. Made from aluminum alloy through a stamping process With hold-open at 0º and ±90º Pivot pins in stainless steel AISI 420 Stainless steel A2 screws Glass clamping gaskets made of PE material Certified according to UNE-EN 1154:2003/AC:2006, Grade 8 (500,000 cycles) Certified according to UNE-EN 1670:2007/AC:2008, Grade 5 – maximum corrosion resistance Finishes: Matte silver anodized – Satin anodized stainless steel – Bright anodized stainless steel – Matte black anodized Other anodized finishes RAL colors Glass thickness up to 21.52 mm
