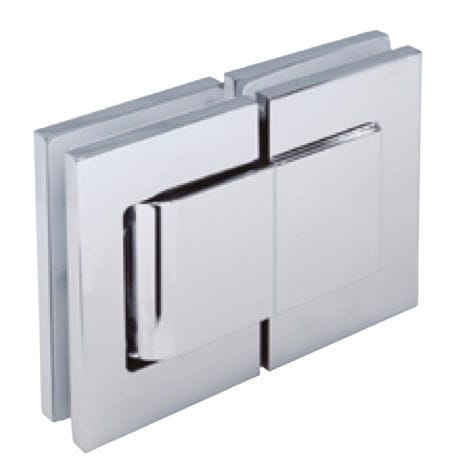

Door hinge H2206

stainless steelsatinglass

Double on the same plane Hinges specifically designed for humid and saline environments, saunas, spas, etc. Made from aluminum alloy through a stamping process With hold-open at 0º and ±90º Pivot pins in stainless steel AISI 420 Stainless steel A2 screws Glass clamping gaskets made of PE material Certified according to UNE-EN 1154:2003/AC:2006, Grade 8 (500,000 cycles) Certified according to UNE-EN 1670:2007/AC:2008, Grade 5 – maximum corrosion resistance Finishes: Matte silver anodized – Satin anodized stainless steel – Bright anodized stainless steel – Matte black anodized Door size: 1000 x 3000 mm Other anodized finishes RAL colors Glass thickness up to 21.52 mm
