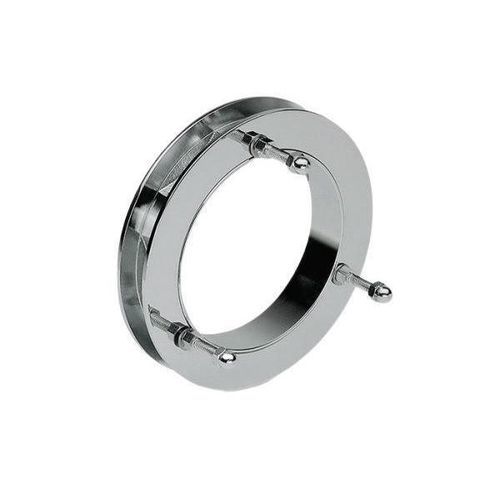

Acoustic window VA180

stainless steelfixeddouble-glazed

SUMMARY
Acoustic window designed for integration into glass doors and partitions; available in variants for different glass thicknesses including a telescopic version for 25–40 mm.

GENERAL CHARACTERISTICS

• Glass clamping plates in 4 mm AISI 304 stainless-steel sheet
• Stainless steel screws A2
• Glass clamping seals made of cork rubber material
• Finishes: Polished stainless steel, Satin stainless steel

RECOMMENDED DOOR DIMENSIONS

• Compatible glass thickness: 10 mm (standard), 12 mm (variant V1212)
• Telescopic variant for glass thickness 25–40 mm (VA2540)
• Recommended door size: up to 1100 x 2500 mm
• Load capacity: 70 kg per unit

OPTIONS AVAILABLE ON REQUEST

• Electrolytic finishes
• RAL colours
• VG pieces with special angles
• Custom special pieces according to specification

AVAILABLE VARIANTS / MODELS

• VA180 – Glass speech hole 10 mm
• V1212 – Glass speech hole 12 mm
• VA218 – Glass speech hole 18 mm
• VA224 – Glass speech hole 24 mm
• VA2540 – Telescopic speech hole for glass thickness from 25 mm to 40 mm

TECHNICAL INFORMATION
Technical diagram and glass machining illustrations are provided for reference; glass machining shows required notch/profile for installation.

TECHNICAL SPECIFICATIONS

• Brand: TRIVEL
• Model: VA180
• Material: AISI 304 stainless steel (4 mm plate)
• Screws: Stainless steel A2
• Seals: Cork rubber material
• Finishes: Polished stainless steel, Satin stainless steel (electrolytic and RAL on request)
• Compatible glass thicknesses: 10 mm, 12 mm; telescopic variant 25–40 mm
• Recommended door dimensions: up to 1100 x 2500 mm
• Load capacity: 70 kg per unit
