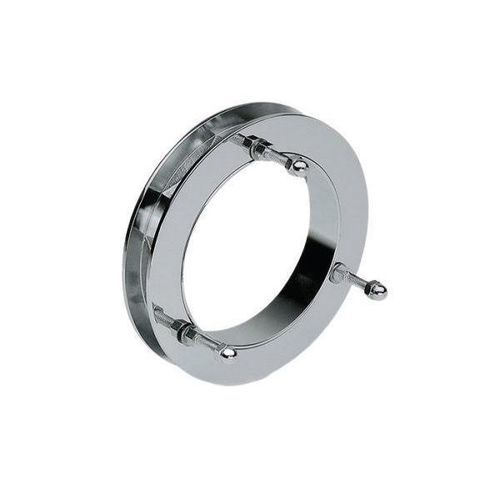

Acoustic window VA224

stainless steelfixeddouble-glazed

GENERAL CHARACTERISTICS

• Glass clamping plates made from 4mm thick stainless-steel sheet AISI 304
• Stainless steel screws A2
• Glass clamping seals made of cork rubber material
• Finishes: Polished stainless steel – Satin stainless steel

Recommended door dimensions

• Glass thickness 10 mm (T)
• Glass thickness 12 mm (T V12)
• Door size 1100 x 2500 mm
• Load 70 kg per unit

OPTIONS AVAILABLE ON REQUEST

• Electrolytic finishes
• RAL colours
• VG pieces with special angles
• Special pieces according to needs

Variations

• VA180 — Glass speech hole 10 mm
• V1212 — Glass speech hole 12 mm
• VA218 — Glass speech hole 18 mm
• VA224 — Glass speech hole 24 mm
• VA2540 — Telescopic speech hole for glass thickness from 25 mm to 40 mm

Glass machining
Operations and machining templates available for adaptations (e.g. specific holes/notches required by the model).

Technical specifications

• Brand: TRIVEL
• Model: VA224
• Application: Acoustic window / Glass speech hole
• Material: Stainless steel AISI 304 (4 mm plate)
• Screws: Stainless steel A2
• Seals: Cork rubber material
• Finishes: Polished stainless steel, Satin stainless steel (electrolytic finishes and RAL colours available on request)
• Glass thickness compatibility: 24 mm (VA224); other variants available for 10 mm, 12 mm and telescopic 25–40 mm
• Recommended door size: 1100 x 2500 mm
• Maximum load: 70 kg per unit
• Options: Special pieces and machining available on request
