Acoustic window VA218
stainless steelfixeddouble-glazed

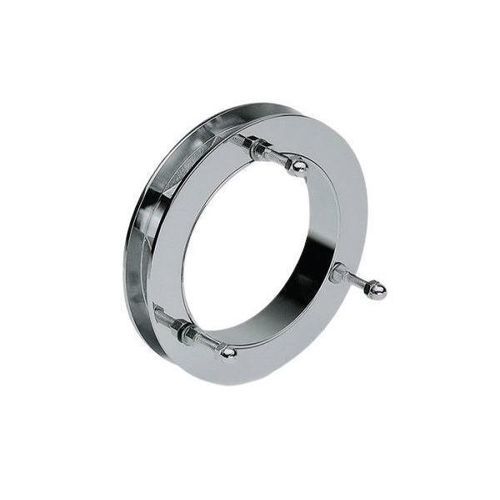

Acoustic window - VA218 - Trivel - stainless steel / fixed / double-glazed
Acoustic window - VA218 - Trivel - stainless steel / fixed / double-glazed
Acoustic window - VA218 - Trivel - stainless steel / fixed / double-glazed - image - 2
Add to favorites
Compare this product
Go to the Trivel website for more information

Characteristics

Material
stainless steel
Opening system
fixed
Glazing
double-glazed
Number of leaves
1 leaf
Color
silver-colored
Performance
acoustic
Shape
round
Technical characteristics
noise-reduction, corrosion-resistant
Ecological characteristics
sustainable
Width

200 mm
(7.87 in)

Description

Product
  • Acoustic window VA218 — glass speech hole 18 mm.


GENERAL CHARACTERISTICS
  • Glass clamping plates in 4 mm AISI 304 stainless-steel sheet
  • Stainless steel screws A2
  • Glass clamping seals in cork-rubber material
  • Finishes: Polished stainless steel, Satin stainless steel


RECOMMENDED DOOR DIMENSIONS
  • Compatible glass thickness: 10 mm (T)
  • Compatible glass thickness: 12 mm (T V12)
  • Recommended door size: up to 1100 x 2500 mm
  • Maximum load: 70 kg per unit


OPTIONS AVAILABLE ON REQUEST
  • Electrolytic finishes
  • RAL colours
  • VG pieces with special angles
  • Customized pieces according to requirements


OTHER VARIANTS IN THE SAME PRODUCT FAMILY
  • VA180 — Glass speech hole 10 mm
  • V1212 — Glass speech hole 12 mm
  • VA224 — Glass speech hole 24 mm
  • VA2540 — Telescopic speech hole for glass thickness from 25 mm to 40 mm


GLASS MACHINING
  • Technical drawings and glass machining references available to match the VA218 configuration


TECHNICAL CHARACTERISTICS / SPECIFICATIONS
  • Reference model: VA218
  • Function: Glass speech hole 18 mm
  • Clamping plate material: AISI 304 stainless steel, 4 mm thickness
  • Screws: Stainless steel A2
  • Seals: Cork-rubber material
  • Available finishes: Polished stainless steel, Satin stainless steel (electrolytic or RAL on request)
  • Compatible glass thicknesses: 10 mm, 12 mm (telescopic option for 25–40 mm in VA2540)
  • Recommended door dimensions: up to 1100 x 2500 mm
  • Maximum load: 70 kg per unit
