Acoustic window V1212
stainless steelfixeddouble-glazed

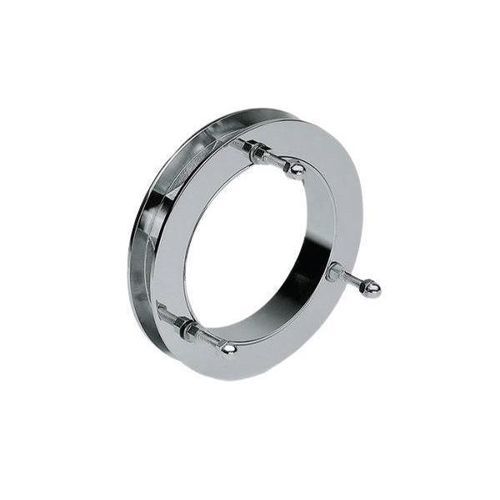

Acoustic window - V1212 - Trivel - stainless steel / fixed / double-glazed
Acoustic window - V1212 - Trivel - stainless steel / fixed / double-glazed
Acoustic window - V1212 - Trivel - stainless steel / fixed / double-glazed - image - 2
Add to favorites
Compare this product
Go to the Trivel website for more information

Characteristics

Material
stainless steel
Opening system
fixed
Glazing
double-glazed
Number of leaves
1 leaf
Color
silver-colored
Performance
acoustic
Shape
round
Technical characteristics
noise-reduction
Ecological characteristics
sustainable
Width

200 mm
(7.87 in)

Description

Product overview
  • Model: V1212 — glass speech hole 12 mm
  • Designed for glazed doors and partitions in architectural projects; technical documentation supplied for installation


General characteristics
  • Glass clamping plates: 4 mm thick AISI 304 stainless steel
  • Screws: stainless steel A2
  • Glass clamping seals: cork-rubber material
  • Finishes: polished stainless steel, satin stainless steel


Recommended door dimensions
  • Compatible glass thickness: 10 mm (T) or 12 mm (T V12)
  • Recommended door size: up to 1100 x 2500 mm
  • Rated load: 70 kg per unit


Options available on request
  • Electrolytic finishes
  • RAL colours
  • VG pieces with special angles
  • Custom pieces manufactured to specification


Available variants
  • VA180 — glass speech hole 10 mm
  • V1212 — glass speech hole 12 mm
  • VA218 — glass speech hole 18 mm
  • VA224 — glass speech hole 24 mm
  • VA2540 — telescopic speech hole for glass thickness 25–40 mm


Technical characteristics / specifications
  • Material: AISI 304 stainless steel (glass clamping plates, 4 mm thick)
  • Screws: stainless steel A2
  • Seals: cork-rubber glass clamping seals
  • Finishes: polished stainless steel, satin stainless steel; additional electrolytic or RAL finishes on request
  • Glass thickness compatibility: 10 mm or 12 mm (varies by variant)
  • Recommended door dimensions: up to 1100 x 2500 mm
  • Rated load: 70 kg per unit
  • Technical drawings and machining instructions: supplied with product
