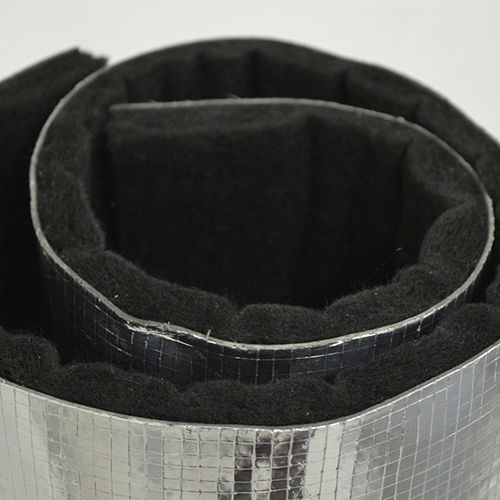

Acoustic insulation ISOLMASS 3 TECH FR

polyesterpolyolefinroll

HEAVY LAYER PRODUCT: THE ALTERNATIVE TO LEAD Under the APLOMB brand, TROCELLEN has been commercializing for many years a multi-layer product, with one or more sheets of lead, laminated with flexible insulating materials. Lead is not always readily accepted by installers and designers; which is why we have developed an alternative with a polyolefin heavy layer. ISOLMASS PRODUCT LINE A multi-layered product range, with heavy layer, laminated with flexible, resilient and sound absorbing materials. Composition: • (optional) ALUNET.: aluminium reinforced foil • heavy layer weighing 3 kg/m., thickness 1,5 mm • layer of polyester fiber (PET), thickness 12 mm, with 85% of post-consumer recycled-content according to ISO 14021 • Size: sheets 1,00 x 2,00 m Applications: Sound insulation of drain pipes. The product must be installed with the polyester fiber in contact with the pipe. Wrap it around the pipe, apply adhesive tapes at the joints, and finally secure it mechanically with straps or plastic/metal clamps. Acoustic properties: Airborne sound and structure-borne sound insulation on waste water installations – Reduction of normalized airborne sound pressure level Lan (EN 14366), according different water flows: Fire reaction: • EN 13501-1 Euroclass: B-s2,d0 / BL-s1,d0 • ISO 3575 100mm/min : Pass • DIN 4102 Class B2: Pass
