Drainage channel with grating F100
slopedpolymer concretecast iron

drainage channel with grating
drainage channel with grating
drainage channel with grating
drainage channel with grating
Add to favorites
Compare this product


Characteristics

Configuration
with grating, sloped
Material
polymer concrete
*grid material
cast iron
Applications
road, for parking lots
Color availability
beige
Level of traffic
for heavy traffic, for pedestrian area
Other characteristics
rainwater, safety, for heavy loads
Length

1,000 mm
(39 in)

Width

154 mm
(6 in)

Depth

190 mm, 250 mm, 310 mm
(7.48 in, 9.84 in, 12.2 in)

Description

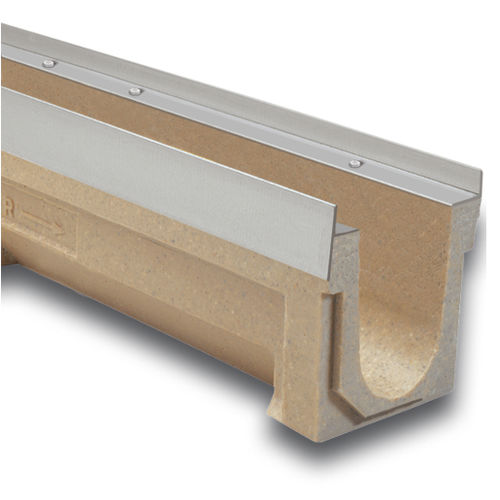

Polymer concrete Linear Drainage Channel ULMA, type F100K: External width 156mm; Internal width 100mm; Available with overall heights between 190mm and 310mm. Suitable for cascaded type slope to collect rain water in 1 metre long units. Safe locking system consists of eight bolts per LM; Integrated galvanized steel edges for lateral protection.
