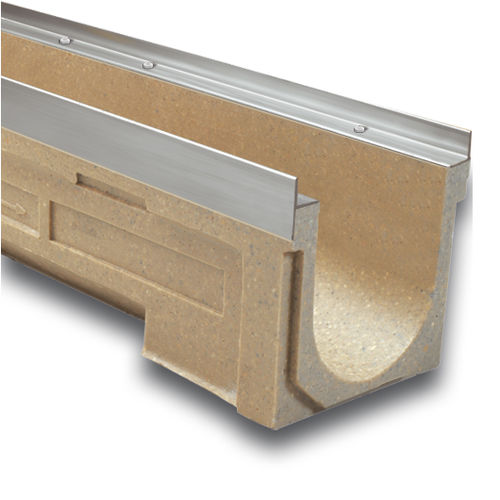

Drainage channel with grating F150
slotslopedpolymer concrete

drainage channel with grating
drainage channel with grating
drainage channel with grating
drainage channel with grating
Add to favorites
Compare this product


Characteristics

Configuration
with grating, slot, sloped
Material
polymer concrete
*grid material
cast iron
Applications
road, for airport
Color availability
beige
Level of traffic
for heavy traffic, for pedestrian area
Other characteristics
rainwater, for heavy loads
Length

500 mm, 1,000 mm
(20 in, 39 in)

Width

206 mm
(8 in)

Depth

220 mm, 270 mm, 320 mm, 370 mm
(8.66 in, 10.63 in, 12.6 in, 14.57 in)

Description

Polymer concrete Linear Drainage Channel ULMA, type F150K: External width 206mm; Internal width 150mm; Available with overall heights between 145mm and 370mm; Suitable also with 2,5% presloped channels or cascaded slope, to collect rain water in 1 metre long units. Safe locking system consists of eight bolts per LM; Integrated galvanized steel edges for lateral protection.
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
