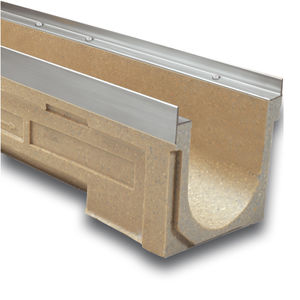

Drainage channel with grating F250slopedpolymer concretegalvanised steel grate
Add to favorites
Compare this product
Characteristics
- Configuration
- with grating, sloped
- Material
- polymer concrete
- *grid material
- galvanised steel grate, cast iron grate
- Applications
- road, for parking lot, for airport
- Color availability
- beige
- Level of traffic
- for heavy traffic, for pedestrian area
- Other characteristics
- rainwater, for heavy loads
- Length
500 mm, 1,000 mm
(20 in, 39 in)- Width
312 mm
(12 in)- Depth
Max.: 650 mm
(25.59 in)Min.: 150 mm
(5.91 in)
Description
Polymer concrete Linear Drainage Channel ULMA, type F250K: External width 312mm; Internal width 250mm; Available with overall heights between 150mm and 650mm; Suitable also with 2,5% presloped channels, cascaded or mixed slope, to collect rain water in 1 metre long units. Safe locking system consists of eight bolts per LM; Integrated galvanized steel edges for lateral protection.
