Drainage channel with grating F200
slopedpolymer concretecast iron

drainage channel with grating
drainage channel with grating
drainage channel with grating
drainage channel with grating
Add to favorites
Compare this product


Characteristics

Configuration
with grating, sloped
Material
polymer concrete
*grid material
cast iron
Applications
road, for parking lots, for airport
Color availability
beige
Level of traffic
for heavy traffic, for pedestrian area
Other characteristics
rainwater, for heavy loads
Length

1,000 mm
(39 in)

Width

260 mm
(10 in)

Depth

263 mm, 313 mm, 363 mm
(10.35 in, 12.32 in, 14.29 in)

Description

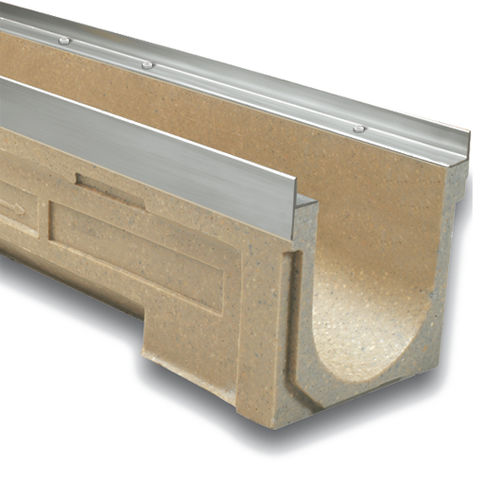

Polymer concrete Linear Drainage Channel ULMA, type F200K: External width 262mm; Internal width 200mm; Available with overall heights between 263mm and 363mm. Suitable for cascaded type slope to collect rain water in 1 metre long units. Safe locking system consists of eight bolts per LM; Integrated galvanized steel edges for lateral protection.
