Cover plywood panel WISA®-FORM

constructionwallfor formwork

Overview

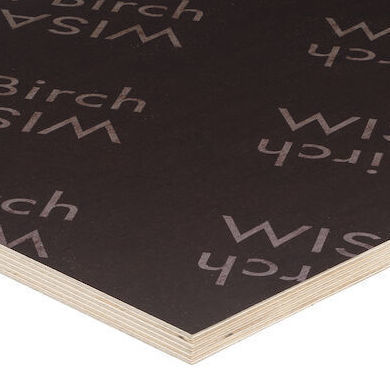

WISA®-Form Birch is a phenolic-coated birch plywood forming panel designed for demanding concrete forming applications. The panel offers a high strength-to-weight ratio, stable striking behavior and reliable releasing properties. It is suitable for frame systems and special forming projects and can be reused many times with correct handling and maintenance.

End uses

• Concrete forming (walls, slabs, portable formwork, precast)

Properties

• Exterior glued
• Forest certified (FSC™, PEFC)
• Machining available
• Made in EU
• Cut-to-size available

Product information
Available thicknesses: 6.5, 9, 12, 15, 18, 19, 21, 24, 27, 30, 35, 40, 50 mm
Standard size range: 1220/1250 x 2440/2500/2700 mm; 1500/1525 x 2500/2700/3000/3050/3660 mm; 1000/2000 x 2000/2500/2700/3000 mm
Maximum size: 1525 x 3660 mm
DoP document numbers: UPM007CPR, UPM008CPR
Certificates: FSC™, FSC™ CW, PEFC CoC, PEFC
For detailed technical values, refer to the product Declaration of Performance (DoP).

Technical specifications

• Base material: Birch plywood
• Surface coating: Phenolic coating
• Designed use: Formwork / casting panels
• Strength-to-weight: High strength-to-weight ratio
• Striking properties: Stable striking properties
• Releasing properties: Good releasing properties
• Durability: Reusable dozens of times with proper care
• Available thicknesses: 6.5 to 50 mm
• Standard sizes: Multiple ranges as listed above
• Maximum panel size: 1525 x 3660 mm
• DoP references: UPM007CPR, UPM008CPR
• Certifications: FSC™, FSC™ CW, PEFC CoC, PEFC
