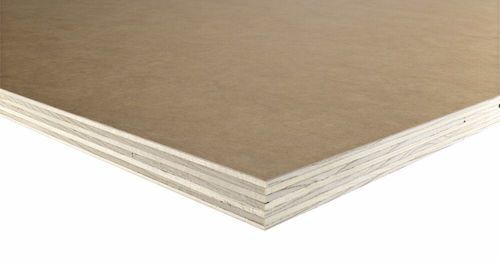

Plywood formwork panel WISA®-Form MDO

sprucemulti-plywood veneer

Overview
WISA®-Form MDO is a light spruce plywood panel designed for formwork applications where a consistent matt concrete finish is required. The panel is produced from cross-banded spruce veneers with a medium density overlay (MDO) on the face to ensure a uniform matt appearance of the concrete surface. Its low weight facilitates handling and reduces transport costs.

End uses

• Concrete forming

Properties

• Environment certified
• Made in EU
• Biobond technology
• Sustainable
• Light weight

Product information
Available thicknesses: 18, 21
Standard size range: 2440x1220
Maximum size: 2440x1220
Certificates: FSC™, FSC™ CW, PEFC CoC, PEFC

Notes
Panel manufactured from spruce veneers in cross-banded construction with a medium density overlay (MDO) on the face to produce a consistent matt concrete finish. For detailed technical values refer to the product Declaration of Performance (DoP) identified as UPM001CPR.

Technical characteristics / specifications

• Product name: WISA®-Form MDO
• Construction: Cross-banded spruce veneers
• Face treatment: Medium density overlay (MDO) providing matt concrete finish
• Typical end use: Formwork / concrete forming
• Available thicknesses (mm): 18, 21
• Standard and maximum panel size (mm): 2440 x 1220
• Key benefits: Light weight, easy to handle, cost efficient transport
• Certifications: FSC™, FSC™ CW, PEFC CoC, PEFC
• Manufacturing origin: Made in EU
• Technology: Biobond technology
• For detailed technical values refer to the product Declaration of Performance (DoP) identified as UPM001CPR
