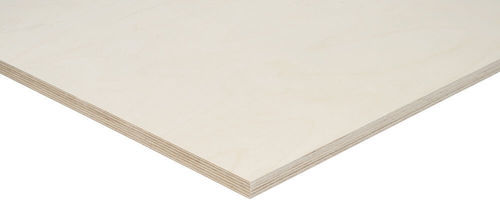

Insulating plywood panel WISA®-LNG NO96

sustainablebirchsustainable

Overview
WISA®-LNG GT NO96 is birch plywood intended for use as a structural material in insulation elements for the transport and storage of liquefied natural gas. The product provides excellent strength and dimensional stability across extreme temperature variations. It is approved for GTT technologies NO96, NO96 L03, NO96 L03+ and NO96 Super+. Products undergo strict quality control and are certified by GTT and major classification societies.

End uses

• LNG insulation panels for transport and storage

Properties

• Designed for LNG applications
• Exterior glued
• Approved for NO96 technologies
• Wide range of standard sizes
• Wide thickness range (6.5–42 mm)
• Cut-to-size available
• Made in EU
• Sustainable material selection

Product information
Available thicknesses
6.5, 9, 12, 15, 21, 24, 30, 35, 37, 42 mm

Standard size range
1220/1250 x 2440/2500/3000/3050/3660 mm
1500/1525 x 2500/3000/3050/3660 mm

Maximum size
1525 x 3660 mm

DoP document numbers
UPM015CPR

Technical note
All products are GTT approved and their technical performance meets GTT requirements.

Technical specifications

• Material: Birch plywood for structural use in insulation elements for LNG transport and storage
• Approvals: GTT technologies NO96, NO96 L03, NO96 L03+, NO96 Super+; certified by GTT and major classification societies
• Performance: Excellent strength and dimensional stability in extreme temperature variations
• Available thicknesses: 6.5, 9, 12, 15, 21, 24, 30, 35, 37, 42 mm
• Standard size range: 1220/1250 x 2440/2500/3000/3050/3660 mm; 1500/1525 x 2500/3000/3050/3660 mm
• Maximum size: 1525 x 3660 mm
• DoP: UPM015CPR
• Gluing: Exterior glue
• Origin: Made in EU
• Options: Cut-to-size available
