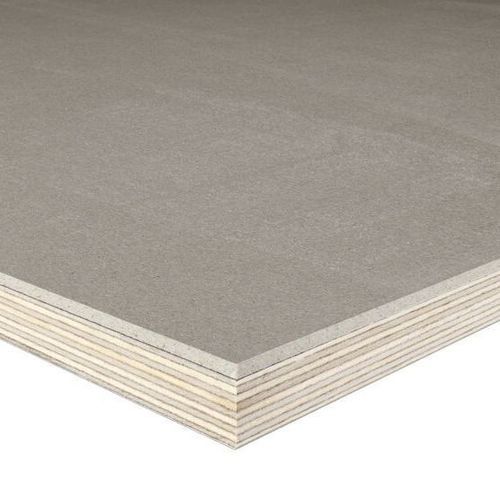

Cover plywood panel WISA®-FORM ELEPHANT

for formworkweatherproofwood

Overview
WISA-Form Elephant is a birch plywood panel with a hardwearing wood-plastic composite coating, developed for concrete formwork applications that require a high number of reuses and consistent surface quality. The panel is manufactured from birch veneers bonded with weather-resistant adhesive and is intended for use in frame systems and rental fleets where longer service life reduces panel change frequency. With proper handling and maintenance, WISA-Form Elephant can typically be reused over 100 times.

End uses

• Concrete forming

Properties

• Exterior glued
• Forest certified
• Made in EU
• Cut-to-size available
• High-performance panel

Product information
Available thicknesses: 15, 16, 18, 19, 21
Standard size range: 1220/1250 x 2440/2500/2700/3000/3050/3300
1525 x 2440/2500/2700/3000/3050/3300/3660
Maximum size: 1525 x 3660
DoP document numbers: UPM007CPR, UPM008CPR
Certificates: FSC™, FSC™ CW, PEFC CoC, PEFC

Technical specifications

• Panel type: Birch plywood panel with wood-plastic composite coating
• Face material: Birch veneers
• Adhesive: Weather-resistant glue (exterior glued)
• Coating: Hardwearing wood-plastic composite coating for extended service life
• Typical reuse: Can typically be reused over 100 times with proper care
• Available thicknesses (mm): 15, 16, 18, 19, 21
• Standard size range (mm): 1220/1250 x 2440/2500/2700/3000/3050/3300; 1525 x 2440/2500/2700/3000/3050/3300/3660
• Maximum size (mm): 1525 x 3660
• DoP document numbers: UPM007CPR, UPM008CPR
• Certificates: FSC™, FSC™ CW, PEFC CoC, PEFC
• Origin: Made in EU
• Options: Cut-to-size available
