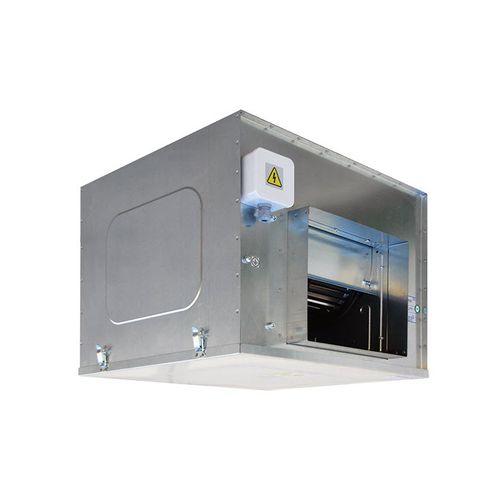

Centrifugal fan VKFductcommercialoutdoor
Add to favorites
Compare this product
Characteristics
- Type
- centrifugal
- Installation
- duct
- Sector
- commercial
- Location
- outdoor
- Material
- galvanized steel
- Other characteristics
- acoustic
- Air flow
Max.: 8,380 m³/h
(295,936.9 ft³/h)Min.: 3,454 m³/h
(121,976.9 ft³/h)- Weight
23 kg, 30 kg, 45.5 kg, 53 kg
(50.71 lb, 66.14 lb, 100.31 lb, 116.84 lb)- Height
435 mm, 490 mm, 560 mm
(17 in, 19 in, 22 in)- Width
550 mm, 600 mm, 700 mm
(22 in, 24 in, 28 in)- Length
505 mm, 555 mm, 655 mm
(20 in, 22 in, 26 in)- Power
550 W, 1,100 W
Description
Direct coupled fan
The casing is made up of galvanized steel sheet
Low noise level with forward-curved-blade centrifugal fans
Suitable for duct connection
Speed controllers are optional
VKF..S series have acoustic insulation with 25 mm NFAF inside to provide more silent work.
VKF..E series are epoxy coated and suitable for outdoor use.
VSC Speed Controller
Catalogs
VKF Fan with Cabinet Units
2 Pages
