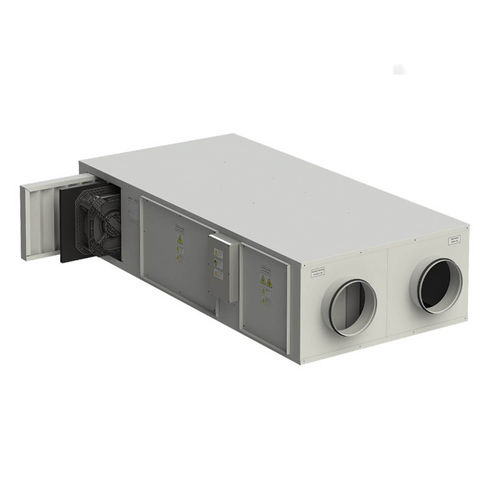

Residential heat recovery unit VHR CF EC
industrialcommercialfor home

Residential heat recovery unit - VHR CF EC - VENCO A.S. - industrial / commercial / for home
Residential heat recovery unit - VHR CF EC - VENCO A.S. - industrial / commercial / for home
Residential heat recovery unit - VHR CF EC - VENCO A.S. - industrial / commercial / for home - image - 2
Residential heat recovery unit - VHR CF EC - VENCO A.S. - industrial / commercial / for home - image - 3
Add to favorites
Compare this product

Characteristics

Sector
residential, industrial, commercial
Applications
for home, for office, shop, for bar, for restaurant, for school, for hotel, for apartment
Options
compact, heat-recovery
Air flow

Max.: 2,193 m³/h
(77,445.1 ft³/h)

Min.: 493 m³/h
(17,410.1 ft³/h)

Length

1,475 mm, 1,545 mm, 1,755 mm
(58 in, 61 in, 69 in)

Width

800 mm, 1,265 mm
(31 in, 50 in)

Height

385 mm, 425 mm
(15 in, 17 in)

Weight

50 kg, 61 kg, 105 kg, 120 kg
(110.231 lb, 134.482 lb, 231.485 lb, 264.555 lb)

Description

VENCO Heat Recovery Units (VHR) are designed for saving energy and also improving indoor air quality. VENCO Heat Recovery Ventilators provide convenience and vast application possibilities for ventilation and air-conditioning of residential, commercial and industrial areas by using aluminum plate type counter flow heat exchangers, recovering heat from air to air. The heat is effectively transferred from warm air to cold air by the heat exchangers with high conductivity, efficiency and performance. 5 standard models with CE mark, ErP 2018 Compliance, High efficient and direct driven EC Fans with low noise level, Proper ventilation by fan speed control having 5 levels for exhaust air and fresh air controlled separately, Easy installation and maintenance by compact design, Aluminum plate type counter flow heat exchangers with high conductivity and performance, High indoor air quality with synthetic fiber G3 filters, Excellent sound and heat isolation with fully insulated cabinet.
