Extractor fan VMC
centrifugalroofcommercial

extractor fan
extractor fan
Add to favorites
Compare this product


Characteristics

Type
extractor, centrifugal
Installation
roof
Sector
commercial
Material
galvanized steel
Location
outdoor
Color
white
Other characteristics
permanent extraction
Air flow

Min.: 1,492 m³/h
(52,689.5 ft³/h)

Max.: 38,111 m³/h
(1,345,877.3 ft³/h)

Weight

49 kg, 62 kg, 74.4 kg, 85 kg, 112 kg
(108.03 lb, 136.69 lb, 164.02 lb, 187.39 lb, 246.92 lb)

Height

Min.: 528 mm
(21 in)

Max.: 1,145 mm
(45 in)

Width

640 mm, 705 mm, 760 mm, 810 mm, 870 mm
(25 in, 28 in, 30 in, 32 in, 34 in)

Length

800 mm, 870 mm, 930 mm, 990 mm, 1,067 mm
(31 in, 34 in, 37 in, 39 in, 42 in)

Power

370 W, 750 W, 1,100 W, 1,500 W, 3,000 W

Description

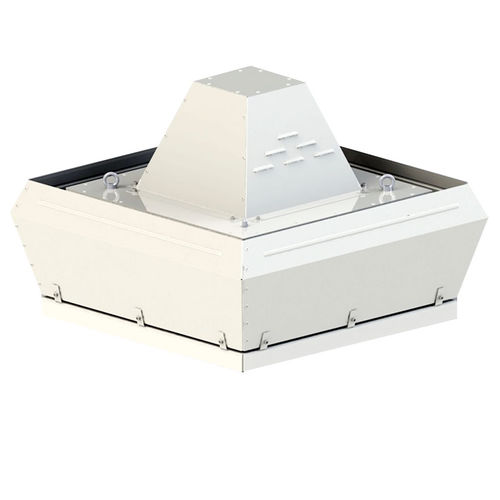

VENCO VMC Roof Type Kitchen Exhaust Fans are used especially for kitchen ventilation applications although being used for different ventilation applications as well. The motor isn’t exposed to oily and high temperature exhaust air since it is outside of air flow. The motor is outside of air flow Direct coupled and backward curved aluminum blade fan provides high efficiency Electrical motors with IP 55 and F class insulation Frequency convertors are optional to control the capacity in the range of % 25 - %100. The design provides easy installation and maintenance Frequency Inventers AKF Active Carbon Filter Metal Filter MC Roof Type Fan Mounting Base Frame
