Architecture software ISO X
drawingfor concrete structuresfor hydraulic and thermal installations

architecture software
architecture software
architecture software
architecture software
Add to favorites
Compare this product


Characteristics

Type
architecture, drawing
Applications
for concrete structures, for hydraulic and thermal installations
Other characteristics
2D

Description

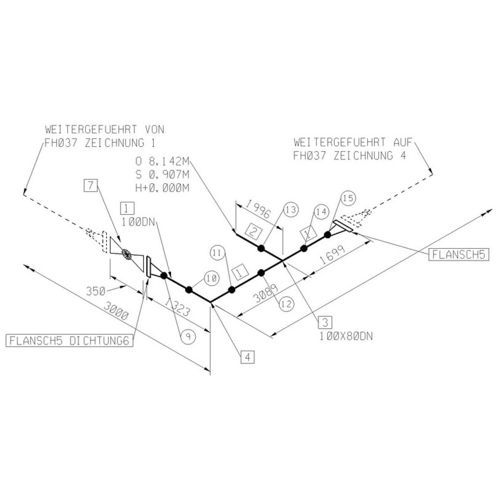

The Isometric drawing module allows you to automate the generation of pipeline isometric models from the TRICAD MS® Piping module. Simply transfer the designed pipe network with all associated parts to the P-ISOGEN tool and generate the finished isometric model in DGN format. This produces a complete model including all relevant data such as position numbers, weld lists, weld points, pipe bends, fittings, gravity-flow, elbows, etc. Highlights: Generation of isometric models for all TRICAD MS® piping modules Single-line isometric model Bill of materials and weld list Supports multiple sheets Integrated design headers and legends Beveled hatching Very little work subsequently required on the generated isometric models

VIDEO

Catalogs

No catalogs are available for this product.

See all of VenturisIT GmbH‘s catalogs
