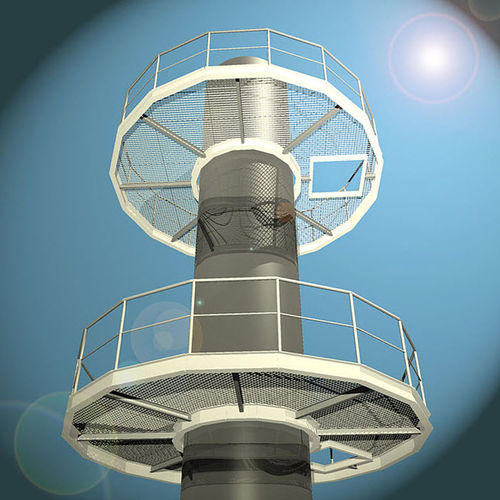

This module helps you to create staging and steelwork layouts in 2D and 3D using simple routings with head plates, miter joints or weld gaps.
Easily add grid flooring, plate flooring and simple covers to the staging. Fences, stairs and ladders are predesigned and can be modified simply. We have created threshold values for step length, comfort and safety. You can export bills of equipment to Excel and send your data in SDNF format to a Building module.
Highlights:
Sample database containing over 100 staircases and more than 25 ladders
Threshold value verification (step length)
Protective fences with doors and penetrations
Bills of equipment for all components
Part-automated design of entire stages
SDNF Interface
